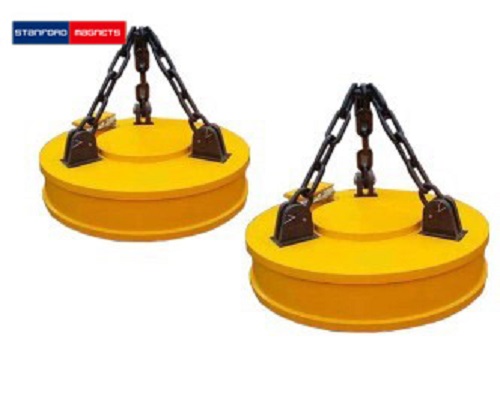

SMDN0995 Lifting Electromagnet

  • Special magnetic circuit design with large air gap magnetic density.
  • Reasonable insulation structure.
  • The constant voltage control method is usually used.
  • Simple structure, safe and reliable, suitable for all kinds of lifting equipment.
INQUIRY Can't Find The Size

Follow Us On


Description

Lifting Electromagnet Introduction

  • Special magnetic circuit design with large air gap magnetic density.

The coil is made of copper wire, and the coil protection plate is made of rolled high manganese steel plate with good wear resistance and strong impact resistance. It features lightweight, low energy consumption, heavy lifting capacity, and long service life.

  • Reasonable insulation structure.

The insulation treatment adopts vacuum drying and vacuum filling to improve the electrical and mechanical properties of the coil. The heat resistance grade of the insulating material can reach the special grade C.

  • The constant voltage control method is usually used.

If the strong excitation control method is used, the lifting capacity can be further improved.

  • Simple structure, safe and reliable, suitable for all kinds of lifting equipment.

Lifting Electromagnet Specifications

Electric current (A) Cold-state power (KW) Lifting Capacity (cold/hot state) Mass (kg)
Steel ball Steel ingot Steel scrap
15 3.3 2500 380/200 120/100 490
18 3.96 3000 480/250 150/130 620
26.6 5.9 4500 650/400 250/200 800
35 7.7 6500 1000/800 450/400 1350
45.5 10 7500 1300/1000 600/500 1700
54 12 8500 1400/1100 700/600 2010
71.2 15.6 11000 1900/1500 1100/900 2830
75 16.5 12500 2300/1800 1300/1100 3200
102 22.5 14500 2750/2100 1600/1350 4230
129 28.4 21000 3500/2800 2200/1850 7000
154 33.9 28000 4800/3800 2850/2250 9000

Lifting Electromagnet Applications

Suitable for all kinds of lifting equipment.

Related products: A Series Permanent Magnetic Lifter, B Series Permanent Magnetic Lifter, C Series Permanent Magnetic Lifter, D Series Permanent Magnetic Lifter
