SMMMS-A-C Standard Mounting Magnets

Diameter= 3/4″ (0.75″)
Hole Size= #6 Screw
Height= 1/4″ (0.25″)
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.374 oz. (10.61g)
Pull Force: 19.71 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

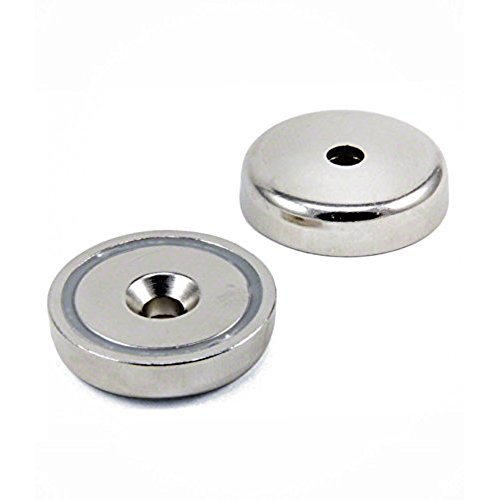

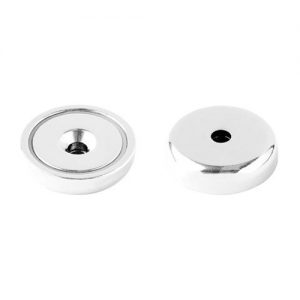

The SMMMS-A-C style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!
