Channel Magnet Assemblies

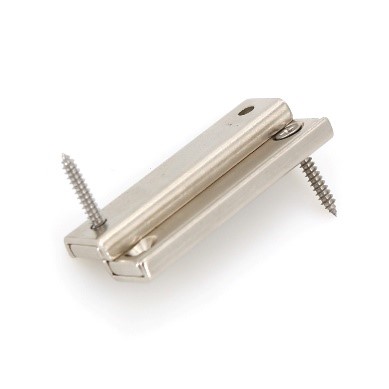

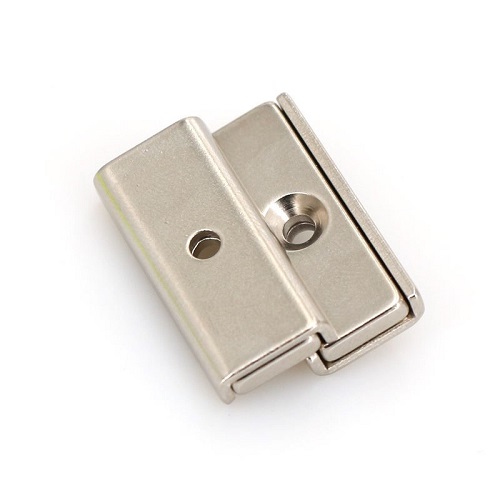

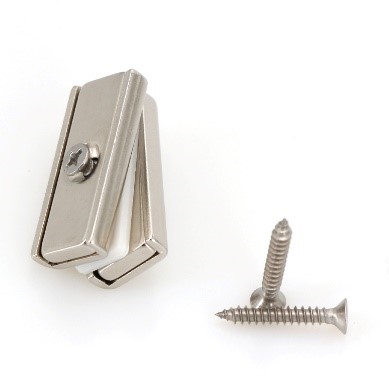

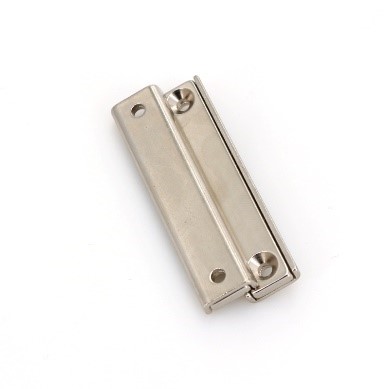

Channel Magnet
Channel Magnet is a kind of rectangular magnet with counterbores, composed of a neodymium magnet and a steel shell. The magnetism is concentrated on one face, which increases the performance of the magnet. One or more pre-drilled holes can be used to hold the channel magnets in place.
Common Applications
• Door latches.
• For holding signage and banners.

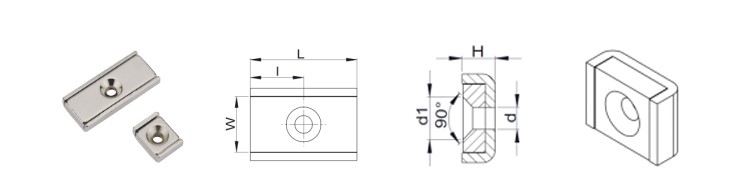

Standard Channel Magnet Specification
|
Grade |
L (mm) |
I (mm) |
W (mm) |
H (mm) |
D (mm) |
d1 (mm) |
Weight (g) |
Vertical Pull (kg) |
|
SCM10 |
10 |
5 |
13.5 |
5 |
3.3 |
6.5 |
5 |
4 |
|
SCM15 |
15 |
7.5 |
13.5 |
5 |
3.3 |
6.5 |
7 |
7 |
|
SCM20 |
20 |
10 |
13.5 |
5 |
3.3 |
6.5 |
9 |
8 |
|
SCM30 |
30 |
15 |
13.5 |
5 |
3.3 |
6.5 |
14 |
16 |
|

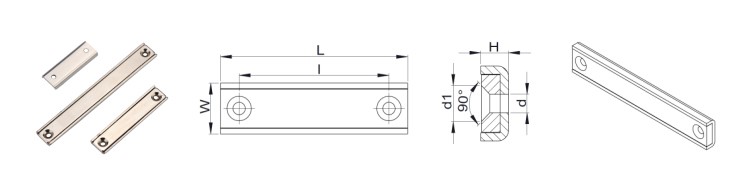

Grade |
L (mm) |
I (mm) |
W (mm) |
H (mm) |
D (mm) |
d1 (mm) |
Weight (g) |
Vertical Pull (kg) |
|
SNI40 |
40 |
30 |
13.5 |
5 |
3.3 |
6.5 |
19 |
17 |
|
SNI50 |
50 |
40 |
13.5 |
5 |
3.3 |
6.5 |
23 |
27 |
|
SNI60 |
60 |
50 |
13.5 |
5 |
3.3 |
6.5 |
28 |
30 |
|
SNI80 |
80 |
70 |
13.5 |
5 |
3.3 |
6.5 |
38 |
33 |
|
SNI100 |
100 |
90 |
13.5 |
5 |
3.3 |
6.5 |
47 |
36 |
|
SNI120 |
120 |
110 |
13.5 |
5 |
3.3 |
6.5 |
57 |
40 |
Packaging:
Channel Magnets by Stanford Magnets are packaged in individual bags or other packaging types you specify.
