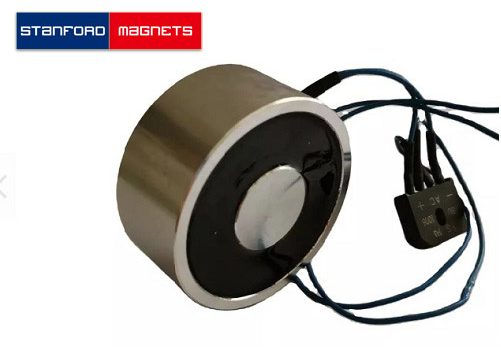

Electric lifting magnet
Powerful and compact
Smooth and flat surface
Low consumption and reliable
Assembly line, sorting machine, mechanical arm, experimental facility, etc
Note: The Force will be decreased due to long time working, lower voltage and improper Sucked object, etc.
It is recommended that the actual force is less than 80% of the sucked force on the nameplate.
Cautions for the use of electromagnets:
1. The object absorbed must be a good magnetic material.
2. The suction surface of the electromagnet must be smooth and clean.
3. The thickness of the object is 5mm at best.
4. The contact surface of the object must be larger than the adsorption surface of the electromagnet
Material: Metal
Input Voltage: 12V DC
Peak Force:250N
Holding Force: 185N
Duty-cycle: 50%;
Electric time: Less than 7 minutes ;
Overall Size : 40 x 20 mm /1.6 x 0.8 inch(Dia. *T)
Thread DIA: 5mm
Lead Length : 24cm/9. 5 inch
Includes:
1 x Holding Electromagnet
