Sandwich Assemblies

Sandwich Assembly Magnets

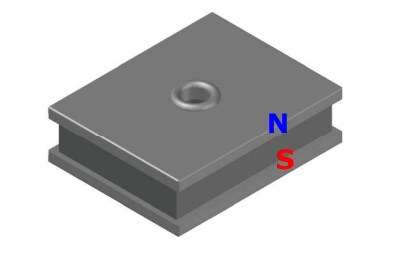

Sandwich Assembly Magnet is a ceramic magnet “sandwiched” between two plated steel pole pieces. This design concentrates the magnetic flux and increases the
pull strength of the magnet up to 32 times compared to the original.

Applications

The strength of Sandwich Assembly Magnets makes them perfect for affixing items in a display case or holding metal objects in place. They are mainly used as:

  • Displays & Signs
  • Object fixtures
  • Channel letter fasteners
  • Cabinet door latches

Sandwich Assembly Magnets Specification

sandwich assemblies

Width(inch) Thickness(inch) Length(inch) Pull lbs
0.835 0.315 1.06 10
0.844 0.313 1.06 16
0.844 0.563 1.06 20
0.844 0.347 2.094 25
0.844 0.313 3.060 22
0.615 1.540 2.125 50
0.637 1 2.125 50

Packaging:

Sandwich Assembly Magnets by Stanford Magnets are packaged in individual bags or other packaging types you specify.



Other Magnetic Assemblies:

Halbach Arrays
Torque and Linear Couplers
Magnet Rotors
Voice Coil Motors

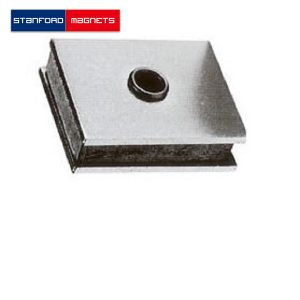

Sandwich Assembly Magnet SMCA6202

SMON3104 Sandwich Assembly Magnet SMCA6202

W 0.844 in; H 0.313 in; L 1.06 in
Inquiry

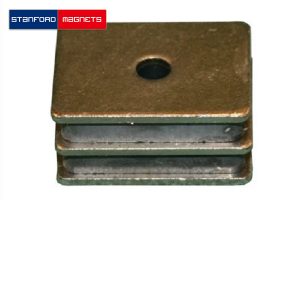

Sandwich Assembly Magnet SMCB6501

SMON3105 Sandwich Assembly Magnet SMCB6501

W 0.844 in; H 0.563 in; L 1.06 in
Inquiry

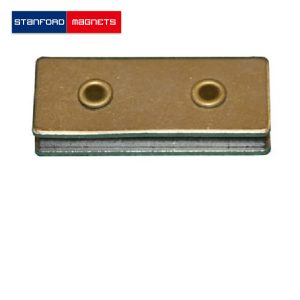

Sandwich Assembly Magnet SMDC6201

SMON3106 Sandwich Assembly Magnet SMDC6201

W 0.844 in; H 0.347 in; L 2.094 in
Inquiry

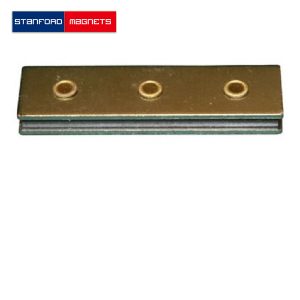

Sandwich Assembly Magnet SME6501

SMON3107 Sandwich Assembly Magnet SME6501

W 0.844 in; H 0.313 in; L 3.06 in
Inquiry

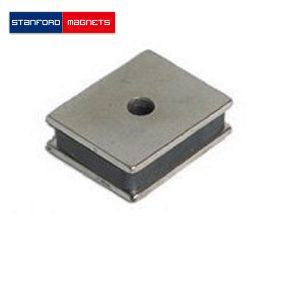

Sandwich Assembly Magnet SMCZ6202

SMON3108 Sandwich Assembly Magnet SMCZ6202

W 0.615 in; H 1.54 in; L 2.125 in
Inquiry
Sandwich Assembly Magnet SMCJ6201

SMON3109 Sandwich Assembly Magnet SMCJ6201

W 0.637 in; H 1 in; L 2.125 in
Inquiry

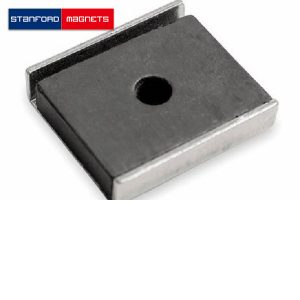

Standard Channel Magnet SMCA6501

SMON3110 Standard Channel Magnet SMCA6501

W 0.89 in; H 0.25 in; L 1 in
Inquiry
Sandwich Assembly Magnet SMCA6201

SMON3112 Sandwich Assembly Magnet SMCA6201

W 0.835 in; H 0.315 in; L 1.06 in
Inquiry
