Showing 1–16 of 57 results

Different styles of mounting hardware utilizing the incredible power of neodymium magnets. Designed for ANSI standard hardware, includes some with holes, studs and female studs.

Metric Mounting Magnets

SMMM-A-16 Metric Mounting Magnets

Dimensions: D=16mm (0.63") d1=3.5mm (0.14") (Sized for M3 screw) d2=6.5mm (0.26") (Tapered countersunk hole) h=5mm (0.20")
Inquiry
Metric Mounting Magnets

SMMM-A-20 Metric Mounting Magnets

Dimensions: D=20mm (0.79") d1=4.5mm (0.18") (Sized for M4 screw) d2=8.5mm (0.33") (Tapered countersunk hole) h=7mm (0.28")
Inquiry
Metric Mounting Magnets

SMMM-A-25 Metric Mounting Magnets

Dimensions: D=25mm (0.98") d1=5.5mm (0.22") (Sized for M5 screw) d2=10mm (0.39") (Tapered countersunk hole) h=8mm (0.32")
Inquiry
Metric Mounting Magnets

SMMM-A-32 Metric Mounting Magnets

Dimensions: D=32mm (1.26") d1=5.5mm (0.22") (Sized for M5 screw) d2=10mm (0.39") (Tapered countersunk hole) h=8mm (0.32")
Inquiry
Metric Mounting Magnets

SMMM-A-36 Metric Mounting Magnets

Dimensions: D=36mm (1.42") d1=6.5mm (0.26") (Sized for M6 screw) d2=12mm (0.47") (Tapered countersunk hole) h=8mm (0.31")
Inquiry
Metric Mounting Magnets

SMMM-A-42 Metric Mounting Magnets

Dimensions: D=42mm (1.65") d1=6.5mm (0.26") (Sized for M6 screw) d2=12.5mm (0.49") (Tapered countersunk hole) h=9mm (0.35")
Inquiry
Metric Mounting Magnets

SMMM-A-48 Metric Mounting Magnets

Dimensions: D=48mm (1.89") d1=8.5mm (0.33") (Sized for M8 screw) d2=16mm (0.63") (Tapered countersunk hole) h=11mm (0.43")
Inquiry
Metric Mounting Magnets

SMMM-A-60 Metric Mounting Magnets

Dimensions: D=60mm (2.36") d1=8.5mm (0.33") (Sized for M8 screw) d2=16.5mm (0.65") (Tapered countersunk hole) h=15mm (0.59")
Inquiry
Metric Mounting Magnets

SMMM-A-75 Metric Mounting Magnets

Dimensions: D=75mm (2.95") d1=10.5mm (0.41") (Sized for M10 screw) d2=19mm (0.75") (Tapered countersunk hole) h=18mm (0.71")
Inquiry

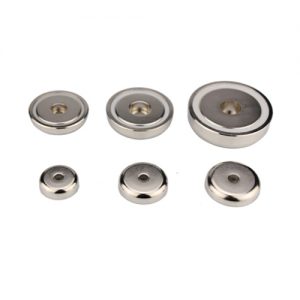

metric pot magnets

SMMM-B-16 Metric Mounting Magnets

Dimensions: D=16mm (0.63") d1=3.5mm (0.14") (Sized for M3 screw) d2=6.5mm (0.26") (Straight counterbored hole) h=5mm (0.20")
Inquiry
metric pot magnets

SMMM-B-20 Metric Mounting Magnets

Dimensions: D=20mm (0.79") d1=4.5mm (0.18") (Sized for M4 screw) d2=8.5mm (0.33") (Straight counterbored hole) h=7mm (0.28")
Inquiry
metric pot magnets

SMMM-B-25 Metric Mounting Magnets

Dimensions: D=25mm (0.98") d1=5.5mm (0.22") (Sized for M5 screw) d2=10mm (0.39") (Straight counterbored hole) h=8mm (0.31")
Inquiry
metric pot magnets

SMMM-B-32 Metric Mounting Magnets

Dimensions: D=32mm (1.26") d1=5.5mm (0.22") (Sized for M5 screw) d2=10mm (0.39") (Straight counterbored hole) h=8mm (0.32")
Inquiry
metric pot magnets

SMMM-B-36 Metric Mounting Magnets

Dimensions: D=36mm (1.42") d1=6.5mm (0.26") (Sized for M6 screw) d2=11mm (0.43") (Straight counterbored hole) h=8mm (0.31")
Inquiry
metric pot magnets

SMMM-B-42 Metric Mounting Magnets

Dimensions: D=42mm (1.65") d1=6.5mm (0.26") (Sized for M6 screw) d2=12.5mm (0.49") (Straight counterbored hole) h=9mm (0.35")
Inquiry
metric pot magnets

SMMM-B-48 Metric Mounting Magnets

Dimensions: D=48mm (1.89") d1=8.5mm (0.33") (Sized for M8 screw) d2=15mm (0.59") (Straight counterbored hole) h=11mm (0.43")
Inquiry
