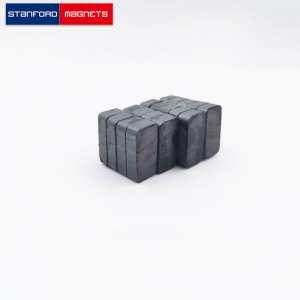

Ceramic Ferrite magnet is one of the most cost-effective magnetic materials. It has a fair to good resistance toward corrosion and it can operate in moderate heat. Ceramic Ferrite magnets are low energy products and they are usually used in assemblies containing mild steel.

Advantages of Ceramic Magnets:

Cost-effective: One of the most economical magnetic materials.
Corrosion resistance: Offers good to fair resistance against corrosion.
Moderate heat resistance: Suitable for operation in moderate temperature environments.
Low energy products: Generally lower energy products compared to other magnets, making them ideal for specific applications.
Easy to manufacture: Produced using powder technology techniques, which allows for cost-efficient production.

Typical Applications of Ceramic Magnets:

DC Motors: Ceramic magnets are widely used in electric motors due to their affordability and performance.
Magnetic Separators: Commonly applied in industrial separation processes.
Magnetic Resonance Imaging (MRI): Ceramic magnets are used in medical imaging equipment.
Automotive Sensors: Found in various automotive sensor systems for precise measurements.
Speakers and Audio Equipment: Ceramic Magntes are employed in low-cost speakers and other audio applications.
Refrigerators: Often used in magnet assemblies for household appliances.
Toys and Hobby Projects: Ceramic magnets are popular in small-scale DIY applications.

Grades of Ceramic Magnets:

Standard Ceramic Ferrite (e.g., Y30, Y35): Typically used in low-energy applications.
High-Performance Grades (e.g., Y40, Y45): Offer better magnetic properties for more demanding applications.
Strontium Ferrite (SrFe??O??): A common type used for increased stability and performance in high-temperature environments.

Stanford Magnets specializes in manufacturing and supplying Ceramic Ferrite magnets applied in various industrial applications. We have advanced technology, rich experience, and professional engineering technicians in this field. If you require a specific size, please contact us for a quote.

FAQ

What are the key features of ferrite/ceramic magnets?

Cost-Effectiveness: They are among the most economical types of magnets available. Resistance to Demagnetization: Ferrite magnets have good resistance to demagnetization. Corrosion Resistance: They are highly resistant to corrosion and do not require protective surface treatments. Low Energy Product: While not as powerful as rare-earth magnets (like neodymium), they offer sufficient magnetic strength for many applications.

What are ferrite/ceramic magnets used for?

Ferrite magnets are used in a wide range of applications, including: Electric Motors and Generators: Particularly in appliances and automotive applications. Speakers and Microphones: Due to their magnetic strength and stability. Magnetic Separators: For separating ferrous materials in recycling and mining operations. Crafts and Hobbies: Such as fridge magnets and various DIY projects. Educational Purposes: For teaching magnetic principles in schools.

How strong are ferrite/ceramic magnets compared to other types?

Ferrite magnets have lower magnetic energy products compared to rare-earth magnets like neodymium and samarium-cobalt. However, they provide enough magnetic strength for many applications and are preferred when cost is a significant factor or when high magnetic strength is not essential.

Can ferrite/ceramic magnets be customized?

Yes, ferrite magnets can be shaped and sized during the manufacturing process to meet specific requirements. They are typically formed by pressing in a die, either in a wet (isostatic pressing) or dry (uniaxial pressing) process, and then sintered to achieve their final properties. However, their brittleness limits post-sintering machining to simple grinding processes.

How do you care for ferrite/ceramic magnets?

Ferrite magnets are quite durable and do not rust, so they require minimal maintenance. However, they are brittle and can chip or break if dropped or mishandled. They should be stored in a dry environment to prevent any possible corrosion of other components or materials attached to the magnets.

Are ferrite/ceramic magnets affected by temperature?

Ferrite magnets can lose some magnetism permanently at high temperatures, though they have a relatively high Curie temperature (the temperature at which a magnet loses its magnetism) compared to other magnet types. Their magnetic properties begin to degrade at temperatures above 250°C (482°F), but they are suitable for most applications where extreme heat is not a concern.

How are ferrite/ceramic magnets made?

The manufacturing process involves mixing iron oxide with strontium or barium carbonate, followed by calcining, milling, pressing the powder in a magnetic field to align the particles, and then sintering. The magnets are then magnetized by exposure to a strong magnetic field.

Can ferrite/ceramic magnets be demagnetized?

Ferrite magnets are resistant to demagnetization but can be demagnetized by exposure to strong opposing magnetic fields, by heating above their Curie temperature, or by physical shock. Under normal conditions, they maintain their magnetism for a long time.
