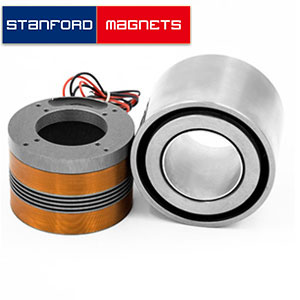

Cylindrical Voice Coil Actuator 0110-005-00A

SMON3244 Cylindrical Voice Coil Actuator 0110-005-00A

Product ID: SMON3244

{{el.prop}}: {{el.options}}

DESCRIPTION

Cylindrical Voice Coil Actuator Introduction

Cylindrical Voice Coil Actuator embodies the essence of linear motion innovation, leveraging electromagnetic induction to orchestrate seamless movement. It features a cylindrical coil meticulously enveloped by a steadfast permanent magnet assembly. Upon the infusion of electric current into the coil, a magnetic field emerges, intertwining harmoniously with the magnet's own field, thus propelling linear motion into existence.

These actuators epitomize efficiency and precision, delivering a compact solution tailored for a plethora of linear motion exigencies. Their swiftness, force-to-weight ratio, and precision render them indispensable across diverse applications, where rapid response, formidable force, and pinpoint accuracy reign supreme.

Cylindrical Voice Coil Actuator Specification

-	Unit	Value
Peak Force	N	110
Continuous Force	N	51.3
Motor Constants	N/√W	9.2
Stroke	mm	5
Radial Clearance	mm	1
Peak voltage	V	36.7
Peak current	A	4
Peak power	W	144.6
Force constant	N/arms	27.9
Reverse electromotive force	Vrms/(m/s)	27.9
Phase resistance	Ω	9.3
Phase inductance	mh	1.3
Electrical time constant	ms	0.17
Outside Diameter	mm	76
Inside Diameter	mm	40

Cylindrical Voice Coil Actuator Applications

Optical Systems: Cylindrical VCAs are used in optical systems for precise positioning and focusing of lenses, mirrors, and other optical components in devices such as cameras, laser scanners, microscopes, and telescopes.
Medical Devices: In medical equipment and devices, VCAs are used for tasks such as precise positioning of medical instruments, scanning in medical imaging systems (e.g., MRI, CT), and controlling the movement of surgical tools in robotic surgery systems.
Semiconductor Manufacturing: VCAs are utilized in semiconductor manufacturing equipment for wafer handling, precision alignment, and positioning of components in lithography, metrology, and inspection systems.
Industrial Automation: In industrial automation and robotics, VCAs are employed for tasks such as pick-and-place operations, conveyor belt-positioning, material handling, and assembly line automation.
Aerospace and Defense: VCAs are used in aerospace and defense applications for controlling the movement of flight control surfaces, antenna positioning, gimbal stabilization systems, and optical targeting systems.
