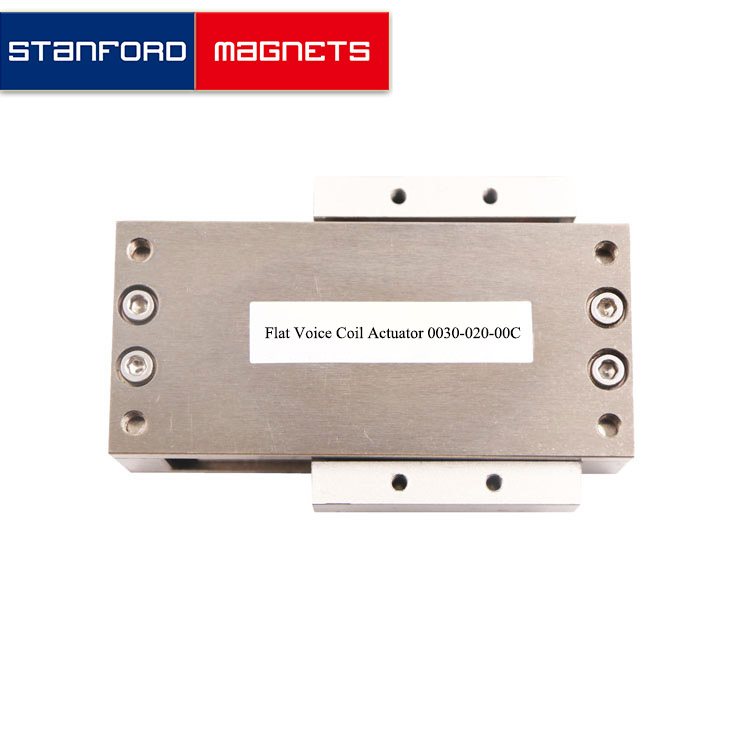

SMON3278 Flat Voice Coil Actuator 0030-020-00C

Product ID: SMON3278

{{el.prop}}: {{el.options}}

DESCRIPTION

Flat Voice Coil Actuator Introduction

Flat Voice Coil Actuator is a type of linear actuator that uses the principles of electromagnetism to create motion. Unlike traditional voice coil actuators, which have a cylindrical shape, flat voice coil actuators are designed with a flat or pancake-shaped coil and magnet assembly. This design allows for a more compact and low-profile form factor, making them suitable for applications where space is limited.

Flat Voice Coil Actuator uses electromagnetic principles to provide direct drive motion, making them suitable for a wide range of high-precision applications in industries like optics, medical devices, semiconductor manufacturing, consumer electronics, and aerospace. Their compact design, high speed, and smooth motion make them an ideal choice for applications with space limitations and high precision requirements.

Flat Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Force	N	30.70
Continuous Force	N	10.90
Force Constant	N/Arms	8.00
Back EMF	Vrms/(m/s)	8.00
Stroke	mm	20.00
Coil Gap	mm	0.60
Electrical specifications
Peak Voltage	V	24.00
Peak Current	A	3.90
Motor Constant	N/√W	4.10
Electrical Time Constant	ms	0.34
Peak Power	W	55.9
Phase Resistance	Ω	3.80
Phase Inductance	mh	1.30
Maximum Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	50.0
Stator Weight	g	460.0
Total Weight	g	510.0
Dimensions	mm	478326.1

Flat Voice Coil Actuator Applications

Optics and Photonics: Used in applications such as lens focusing, mirror positioning, and laser beam steering.
Medical Devices: Employed in precision medical equipment for tasks like surgical instrument control and patient positioning systems.
Semiconductor Manufacturing: Utilized in wafer handling, inspection systems, and other high-precision tasks in semiconductor fabrication.
Consumer Electronics: Used in devices that require precise movement and positioning, such as autofocus mechanisms in cameras.
Aerospace and Defense: Applied in systems that need precise control and compact design, such as UAV gimbals and targeting systems.
