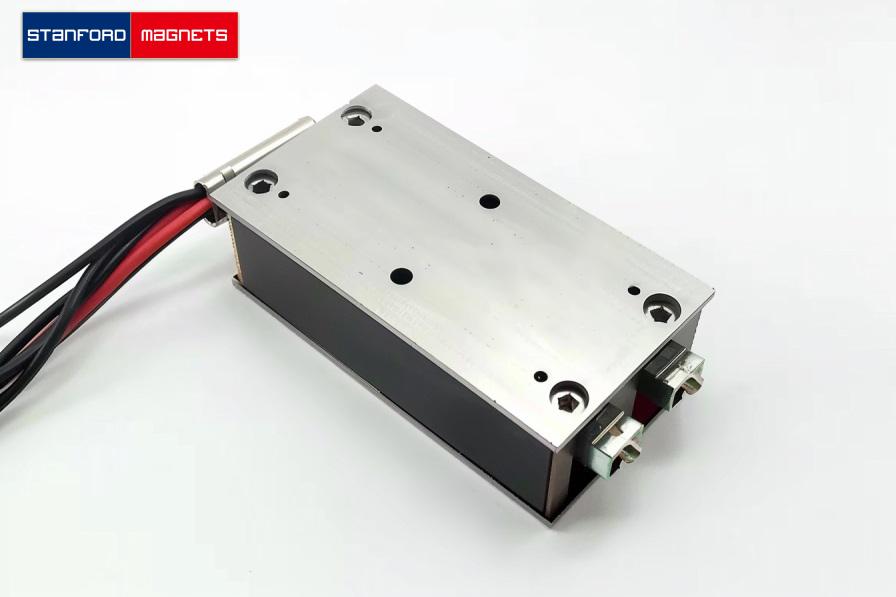

Flat Voice Coil Actuator 0100-002-000

SMON3282 Flat Voice Coil Actuator 0100-002-000

Product ID: SMON3282

{{el.prop}}: {{el.options}}

DESCRIPTION

Flat Voice Coil Actuator Introduction

Flat Voice Coil Actuator is a type of linear actuator that uses the principles of electromagnetism to create motion. Unlike traditional voice coil actuators, which have a cylindrical shape, flat voice coil actuators are designed with a flat or pancake-shaped coil and magnet assembly. This design allows for a more compact and low-profile form factor, making them suitable for applications where space is limited.

Flat Voice Coil Actuator uses electromagnetic principles to provide direct drive motion, making them suitable for a wide range of high-precision applications in industries like optics, medical devices, semiconductor manufacturing, consumer electronics, and aerospace. Their compact design, high speed, and smooth motion make them an ideal choice for applications with space limitations and high precision requirements.

Flat Voice Coil Actuator Specification

-	Unit	Value
Rated performance
Peak Force	N	100.0
Continuous Force	N	47.0
Force Constant	N/Arms	80.3
Back EMF	Vrms/(m/s)	80.3
Stroke	mm	2.0
Coil Gap	mm	2.0
Electrical specifications
Peak Voltage	V	41.2
Peak Current	A	1.25
Motor Constant	N/√W	14.0
Electrical Time Constant	ms	0.7
Peak Power	W	55.2
Phase Resistance	Ω	33.0
Phase Inductance	mh	22.0
Maximum Winding Temperature	℃	155
Mechanical characteristics
Mover Weight	g	250
Stator Weight	g	1900
Total Weight	g	2150
Dimensions	mm	1108251

Flat Voice Coil Actuator Applications

Precision Positioning: Used in applications requiring precise and smooth control, such as in optics and photonics, aerospace, and medical devices.
Vibration Control: Often employed in systems where damping and vibration control are crucial, such as in active suspension systems.
Audio Devices: Similar technology is used in loudspeakers to move the diaphragm and produce sound.
