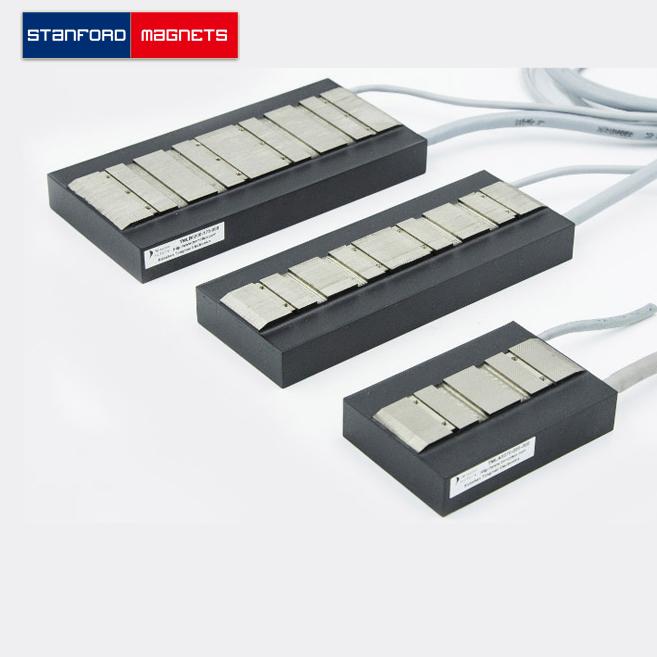

Ironcore Linear Motor TMLA0070-095

SMON6029 Ironcore Linear Motor TMLA0070-095

Product ID: SMON6029

{{el.prop}}: {{el.options}}

DESCRIPTION

Ironcore Linear Motor Introduction

Ironcore Linear Motor offers high force density, exceptional stiffness, and extremely smooth velocity control, all while requiring minimal maintenance.

Ironless linear motors are typically composed of a U-shaped magnet track, with two opposing plates of magnets. This design reduces heat generation and results in lower thrust forces compared to iron core motors. However, the reduced mass of the lighter primary part significantly enhances their acceleration capabilities and shortens settling times. These characteristics make ironless linear motors particularly well-suited for applications requiring precise, rapid movements.

Ironcore Linear Motor Specification

Electrical specifications
Motor Model	-	TMLA0070-095
Peak Force	N	285
Continuous Force	N	70
Motor Constant	N/√W	13.8
Electrical specifications
Peak Current	A	9.5
Continuous Current	A	2.7
Thrust Constant	N/A	31.1
Back EMF	Vrms/(m/s)	18
Resistance	Ohms	3.4
Inductance	mH	16.7
Electrical Time Constant	ms	4.9
Max. Winding Temperature	℃	130
Mechanical Properties
Mover Weight	kg	0.72
Magnetic rail weight	kg/m	3.6
Electromagnetic attraction	N	630
Installation gap	mm	0.85
Pole pitch	mm	32
Stator specifications	-

Ironcore Linear Motor Applications

Ironcore Linear Motors are widely used in automation technology, machine tool, semiconductor equipment, glass cutting machine, laser processing machine, PCB drilling, etc.
