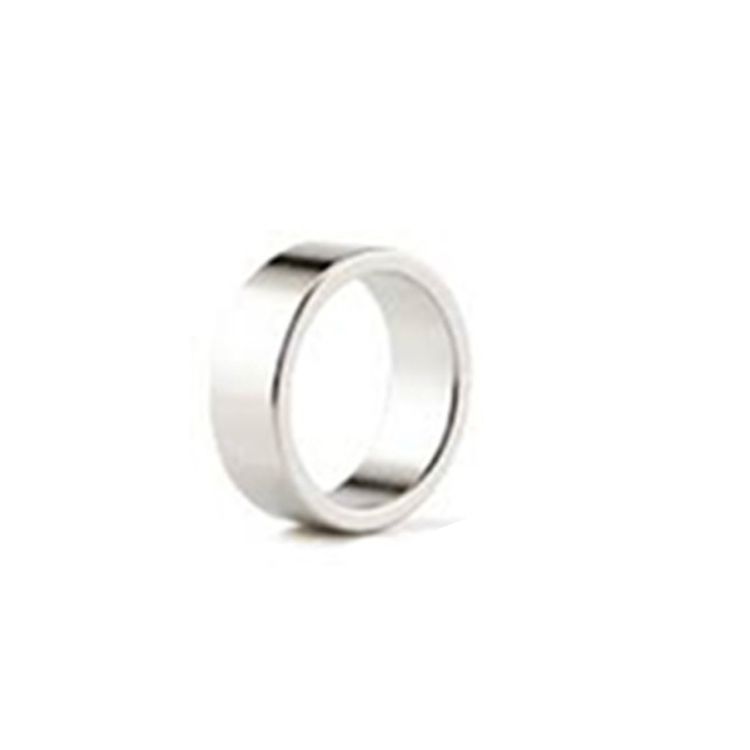

MCA08204 AlNiCo Ring Magnet

The MCA08204 AlNiCo Ring Magnet is made from high performance AlNiCo 8. The dimension also can be customrized.

Product ID: MCA08204
Material: AlNiCo
Shape: Ring
Dimension: 2″ od x 1 1/2″ id x 1″ thick
Grade: Alnico 8
Magnetization direction: Axially Magnetized
Max Operating Temp(C/F): 525/977

AlNiCo material is comprised of aluminum, nickel, cobalt, and iron with varying additions of other elements.

There are two different manufacturing processes for AlNiCo: Cast and sintered.

Cast AlNiCo can be made into many sizes and shapes, whereas Sintered AlNiCo is usually restricted to smaller sizes. However, both processes lead themselves to complex geometries and configurations.

Standard Sintered AlNiCo has tighter dimensional tolerances due to its processing. It also has slightly lower magnetic properties, but better mechanical strength than Cast AlNiCo products.

Characteristics:

Compact crystal, high intensity

good chemistry stability, strong anti-corrosion

Even elements, excellent and magnetic performance

Excellent temperature stability

Highest usage temperature reaches 500°C

Application:

Motors, Meters, Odometer, Speakers, Sensors, Telephone, Guitar, Education, Others.
