A Comprehensive Guide to Epoxy-coated Magnets

Introduction

Magnets play an indispensable role in our everyday lives, from powering electronic devices to enabling renewable energy generation. Within the realm of magnets, epoxy-coated magnets have emerged as a fascinating and versatile category. These magnets offer unique properties and applications that make them a valuable choice in various industries. In this comprehensive guide, we will delve into the world of epoxy-coated magnets, exploring their composition, manufacturing process, advantages, and diverse range of applications.

What is the Epoxy Coating on the Magnet?

Epoxy-coated magnets are characterized by corrosion-resistant coatings. The black coatings are composed of resin and a hardener and come as long-lasting barriers against water, salt, and other negative resources.

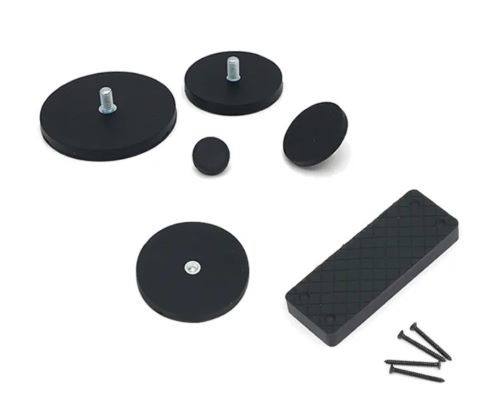

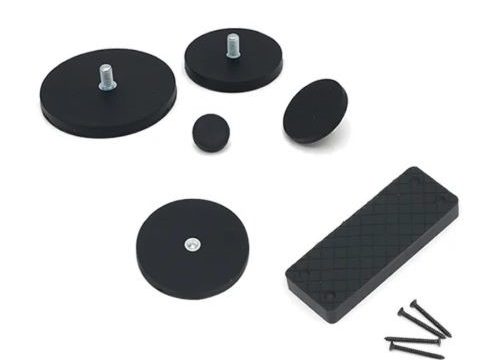

Figure 1. Epoxy-coated Magnets

Processes to Manufacture Epoxy-coated Magnets

The manufacturing process of epoxy-coated magnets can be easily categorized into two stages: magnet manufacturing and epoxy coating.

1.    Magnet Manufacturing

• Feedstocks: Magnetic powders (such as ferrite, neodymium, or samarium cobalt) are used as the feedstocks to produce the magnets that are going to be coated.
• Mixing: The magnetic powder is mixed with a binder material to form a homogeneous mixture.
• Forming: The mixed powder is then cast or molded into the desired shape, such as blocks, discs, or custom designs.
• Heating: The magnets are placed in a high-temperature furnace and heated to their sintering temperature.
• Machining: After that, the magnets may undergo additional machining processes to achieve the final desired shape and dimensions. These processes can include cutting, grinding, drilling, and polishing.

2.    Epoxy Coating

• Cleaning: Ensure that the magnets produced by the above processes are clean and free from any contaminants before applying the epoxy coating. If not, clean them using solvents to remove dirt, grease, or oils.
• Epoxy Preparation: Mix a resin with a hardener in an appropriate proportion to prepare epoxy.
• Coating Application: Apply the prepared epoxy coating onto the magnets via methods like dipping, spraying, or brushing.
• Curing: The magnets then need to undergo a curing process, which typically involves subjecting them to specific temperatures and durations.

Advantages and Applications of Epoxy-coated Magnets

Epoxy-coated magnets offer several advantages that make them a preferred choice in various applications.

• Protection: The epoxy coating provides excellent protection against moisture, corrosion, and mechanical damage, extending the lifespan of the magnet.
• Versatility: Epoxy magnets can be easily customized into different shapes, sizes, and configurations, allowing for a wide range of design possibilities.
• Cost-effective: Such magnets are generally more cost-effective compared to other types of magnets, making them a viable option for applications where cost is a factor.
• Temperature stability: They exhibit good temperature stability, maintaining their magnetic properties even at elevated temperatures.
• Low toxicity: The epoxy resin used in these magnets is typically low in toxicity, ensuring safety in various applications.

Related reading: Necessary Coating of Super Magnets Epoxy-coated magnets find notable applications across diverse industries.

• Electronics: speakers, motors, sensors, and magnetic closures for electronic devices.
• Automotive: electric motors, actuators, and sensors.
• Medical devices: MRI machines, medical imaging equipment, drug delivery systems, and other medical devices.
• Home appliances: refrigerators, washing machines, and microwave ovens.
• Industrial applications: industrial machinery, sensors, magnetic separators, and lifting equipment.
• Crafts and hobbies: DIY projects, model-making, and magnetic jewelry.

Proper Handling and Safety Considerations

While epoxy magnets offer numerous benefits, it's important to handle them with care. Some safety considerations include:

• Avoid exposure to high temperatures: Excessive heat can damage the epoxy coating and affect the magnet's performance. Please remember its maximum working temperature is around 150°C.
• Handle with caution: They can be brittle and may break if subjected to impact or excessive force.
• Keep away from sensitive electronic devices: These magnets can interfere with the operation of electronic devices or erase magnetic data, so it's important to keep them at a safe distance from sensitive equipment.

Conclusion

In short, epoxy-coated magnets are a fascinating category within the world of magnets, offering unique advantages and applications. Their versatility, cost-effectiveness, and protective epoxy coating make them a preferred choice in electronics, automotive, medical devices, and more. By understanding the composition, manufacturing process, and proper handling, we can harness their full potential of them and unlock their incredible capabilities in countless applications. Stanford Magnets has been involved in the manufacturing and sales of magnets and magnet coatings. Different grades of magnets and epoxy-coated magnets are available at a very affordable price. Send us an inquiry if you are interested.
