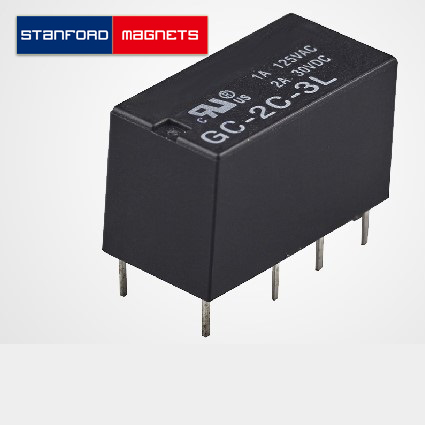

SMON3061 Signal Relay GC-2C-3L

Product ID: SMON3061

{{el.prop}}: {{el.options}}


Signal Relay GC-2C-3L Introduction

Signal Relay GC-2C-3L offers superior contact reliability even with a small signal load owing to its gold-pasted contact and bifurcated crossbar structure. Since signal relays are mainly used to switch currents, they mainly feature a c-contact structure. They are compatible with reflow mounting. Multiple mounting is also possible for reel packages.

Signal Relay GC-2C-3L Specification

Contact Load 1A 125VAC
Coil Voltage (3-24) VDC
Contact Resistance ≤100mΩ (1A 6VDC)
Temperature range -40 to 85℃
Terminal PCB

Signal Relay GC-2C-3L Applications

Signal Relay GC-2C-3L is mainly used for lower than 2A load switching. It can be used in various applications such as telecom & network devices, test and measurement equipment, and security devices. Related products: Signal Relay GY-1C-5L Signal Relay Y4-1A-5D
Download a PDF Specification Sheet
