SMAN0799 Neodymium Arc Magnet

Product ID: SMAN0799
Material: NdFeB
Shape: Arc
Dimension: 1 1/8” o.r. x 1” i.r. x 3/4” x 45
Weight (Oz.): 0.352
Grade: N50
Coating: Nickel Coated Magnets
Pull Force (Lbs): 12.6
Surface Field (Gauss): 3545
Magnetization Direction: North on outside face
Max Operating Temp (C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

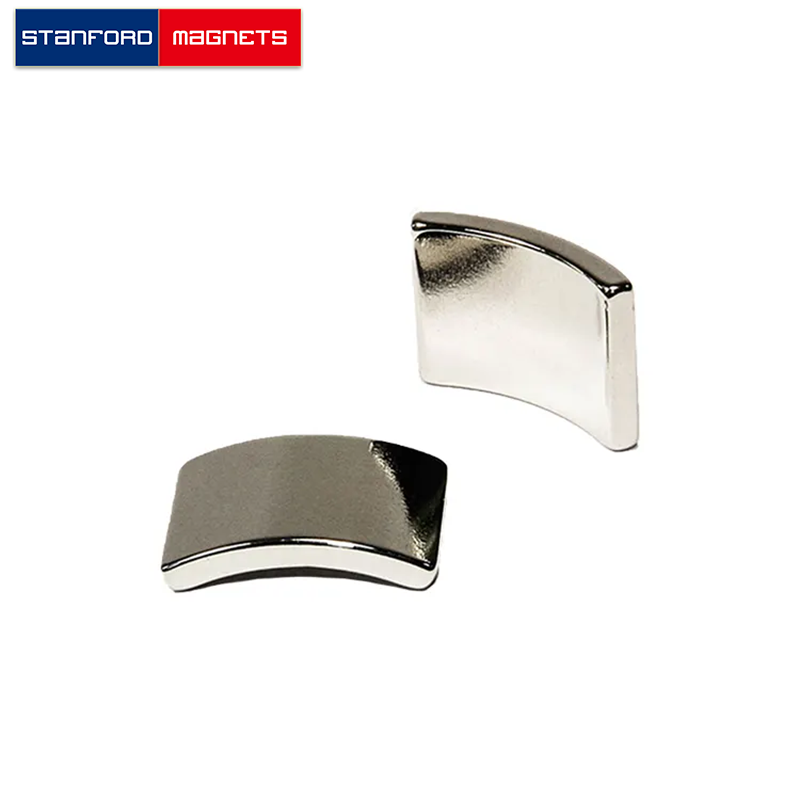

The SMAN0799 neodymium arc magnet is made from super strong N50 NdFeB , coated with Nickel as neodymium magnets get oxidized easily. The dimension of this small neodymium magnet is 1 1/8” O.R. × 1” I.R. × 3/4” × 45°, magnetized North on the outside face; the weight is about 0.022 lbs. It can pull up about 600 times weight of steel, 12.6 lbs.
