SMAN0801 Neodymium Arc Magnet | Stanford Magnets

SMAN0801 Neodymium Arc Magnet

Product ID: SMAN0801
Material: NdFeB
Shape: Arc
Dimension: 2” O.R. x 1” I.R. x 1” x 30°
Weight (Oz.): 3.52
Grade: N52
Coating: Nickel Coated Magnets
Pull Force (Lbs): 74.6
Surface Field (Gauss): 7210
Magnetization Direction: Through circumference
Max Operating Temp (C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

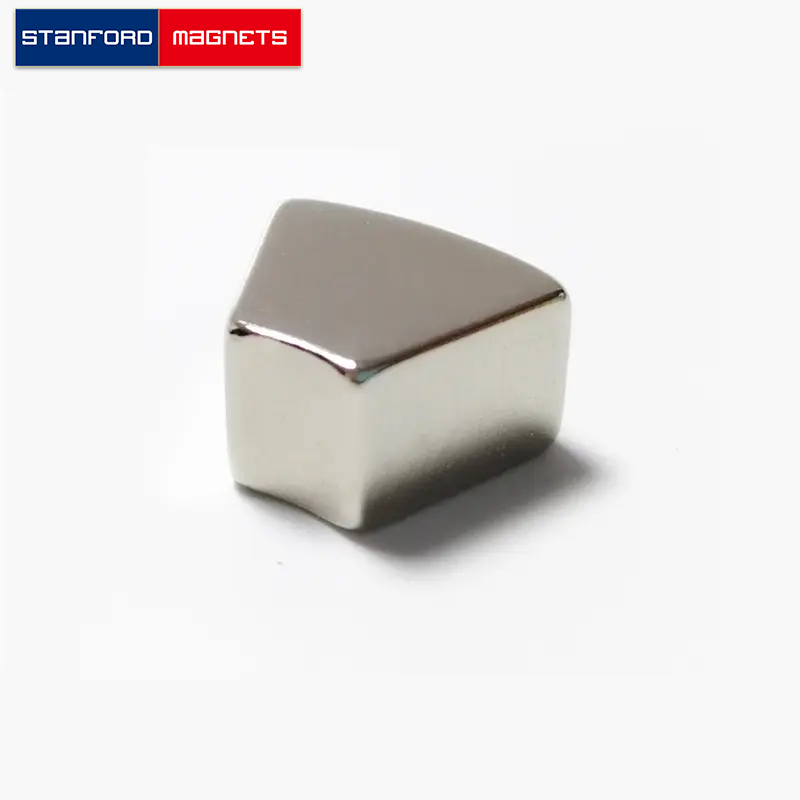

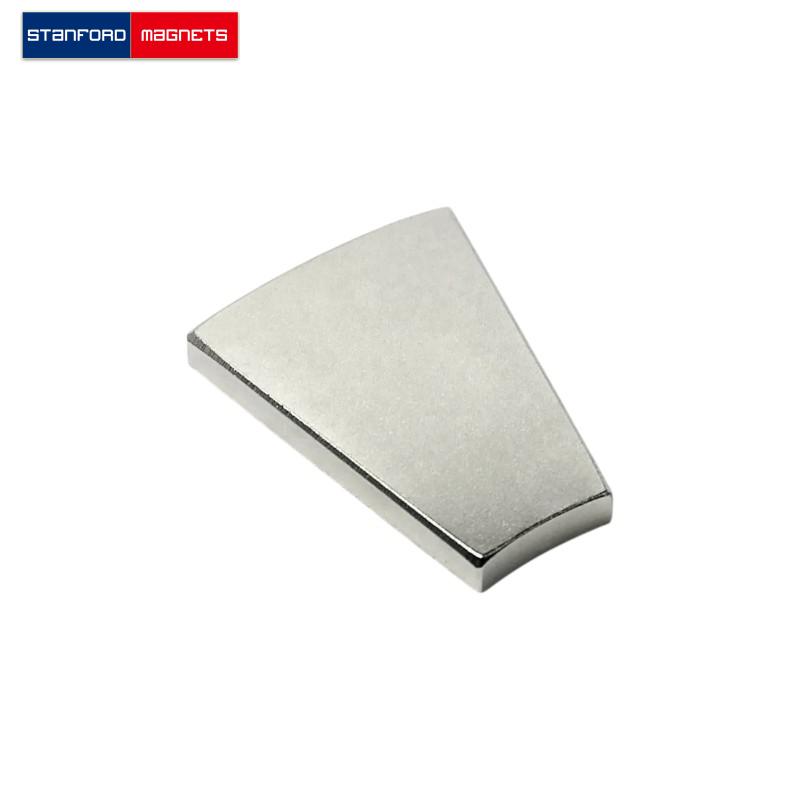

The SMAN0801 neodymium arc magnet is made from super strong N52 NdFeB, coated with Nickel as neodymium magnets get oxidized easily. The dimension of this big neodymium magnet is 2” O.R. × 1” I.R. × 1” × 30°, magnetized Magnetized thru circumference; the weight is about 0.22 lbs. It can pull up about 300 times the weight of steel, 74.6 lbs. The surface field of this item is 7210 gauss, a super high level resulted by high thickness through the magnetic direction.
