SMAN0803 Neodymium Arc Magnet

Product ID: SMAN0803
Material: NdFeB
Shape: Arc
Dimension: 2” O.R. x 1” I.R. x 1” x 30°
Weight (Oz.): 3.52
Grade: N52
Coating: Nickel Coated Magnets
Pull Force (Lbs): 44.5
Surface Field (Gauss): 6420
Magnetization Direction: South on the outside face
Max Operating Temp (C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

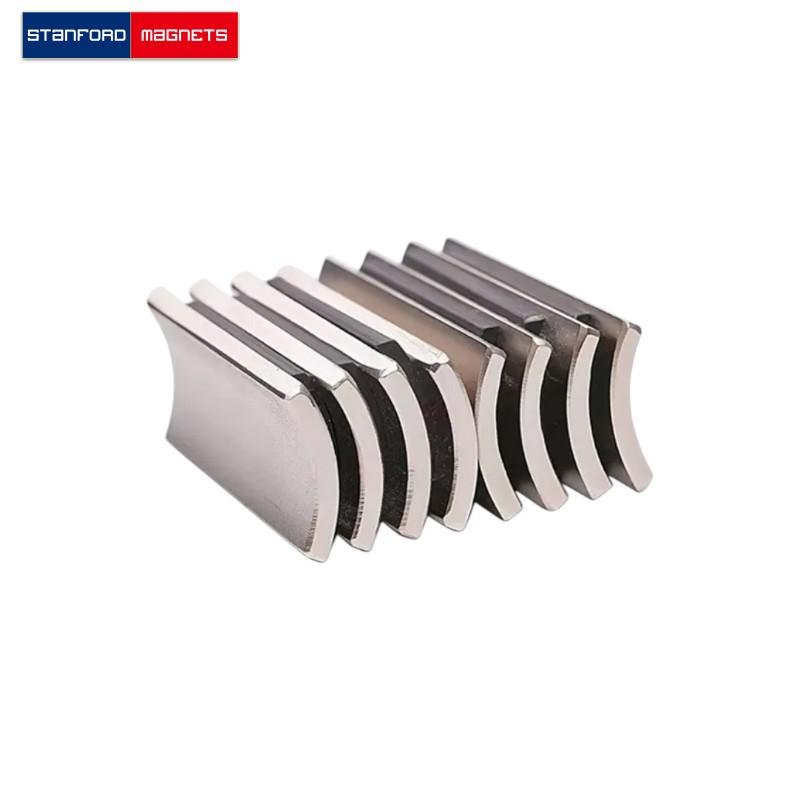

The SMAN0803 neodymium arc magnet is made from super strong N52 NdFeB, coated with Nickel as neodymium magnets get oxidized easily. The dimension of this big neodymium magnet is 2” O.R. × 1” I.R. × 1” × 30°, magnetized Magnetized South on the outside face; the weight is about 0.22 lbs. It can pull up about 200 times the weight of steel, 44.5 lbs. The surface field of this item is 6420 gauss, a super high level resulted by high thickness through the magnetic direction.
