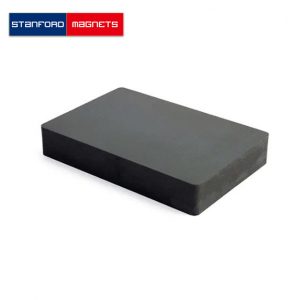

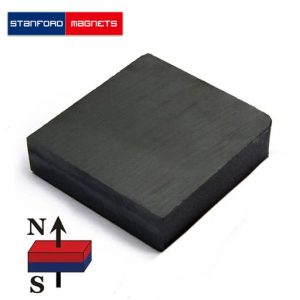

SMBC0022 Ceramic/Ferrite Block Magnet

Product ID: SMBC0022
Material: Ferrite
Shape: Block
Dimension: 6” x 4” x 3/4” Thickness
Weight(Oz.): 48
Grade: C8
Coating: Magnets Requiring no Protective Coating
Pull Force(Lbs): 21
Magnetization direction: Through Thickness
Magnetic Face: 6″ x 4″

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBC0022 Ceramic/Ferrite Block Magnet is made from high-performance C8 Ferrite, without other protective coatings.

SMBC0022 CERAMIC/FERRITE BLOCK MAGNET DESCRIPTION

The ferrite is manufactured by a ceramic process, has a relatively hard texture, and is a brittle material.

Since ferrite magnets have good temperature resistance, low cost, and moderate performance, they have become permanent magnets for a wide range of applications.

SMBC0022 CERAMIC/FERRITE BLOCK MAGNET FEATURES

A low cost alternative to other magnetic materials offers relatively high operating temperatures and good resistance to corrosion & demagnetization. However, it has lower energy levels (Br) and is brittle in nature.

SMBC0022 CERAMIC/FERRITE BLOCK MAGNET APPLICATIONS

Dc motors, Louderspeaks, Magnetic Separators, Automotive Sensors, Education, etc.
