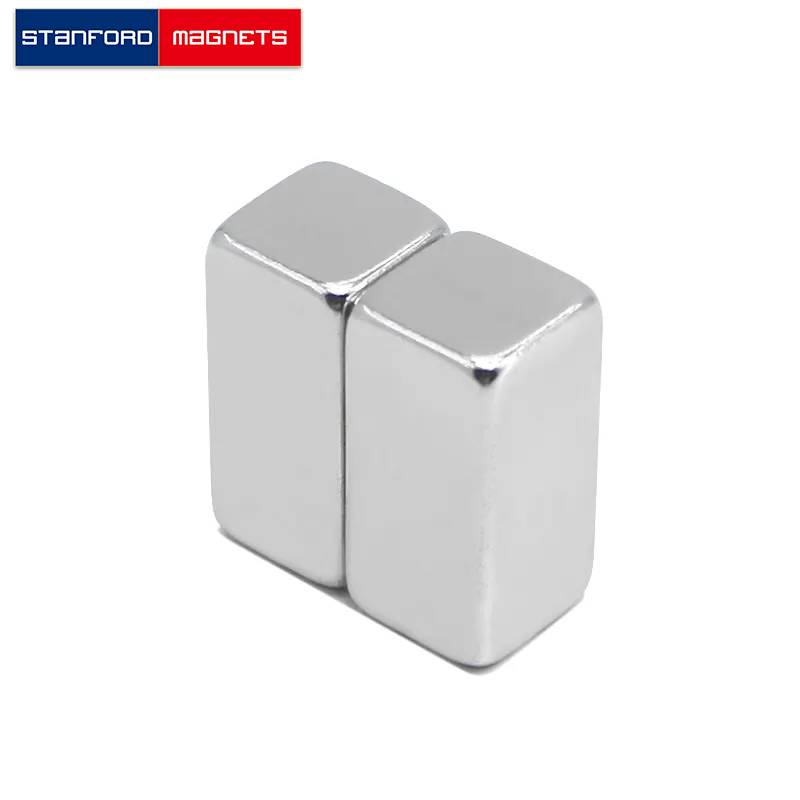

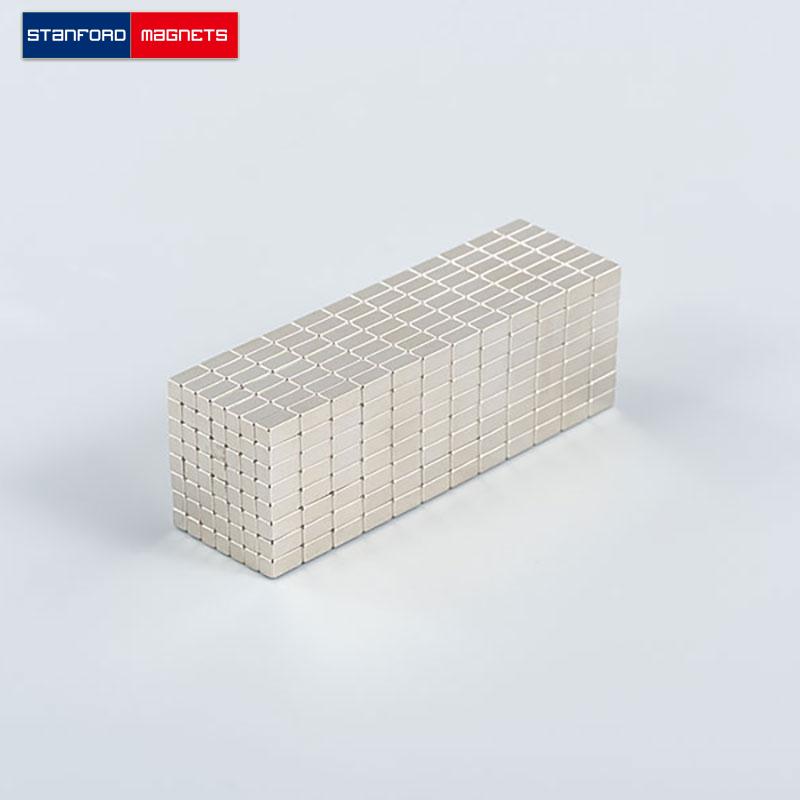

SMBN0382 Neodymium Block Magnet | Stanford Magnets

SMBN0382 Neodymium Block Magnet

Product ID: SMBN0382
Material: NdFeB
Shape: Block

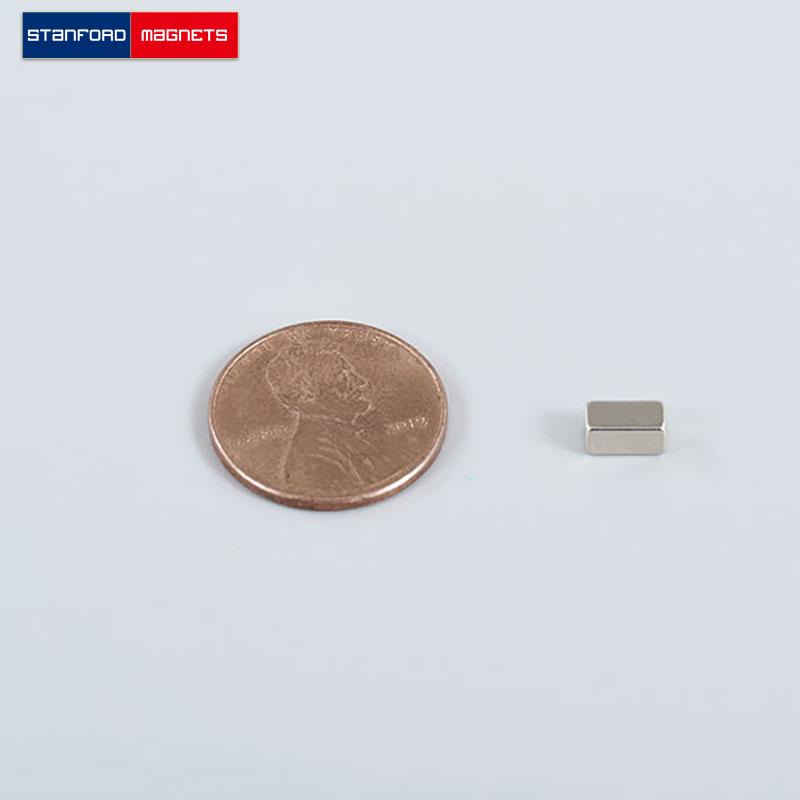

Dimension: 1/8” x 1/8” x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.017
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 1.14
Surface Field(Gauss): 6353
Magnetization Direction: Through Thickness
Magnetic Face: 1/8″ x 1/8″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0382 neodymium block magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/8″ × 1/8″ × 1/4″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0010625 lbs. It can pull up to 1.14 lbs steel. And the surface field is up to 6353 gausses.
