SMBN0387 Neodymium Block Magnet | Stanford Magnets

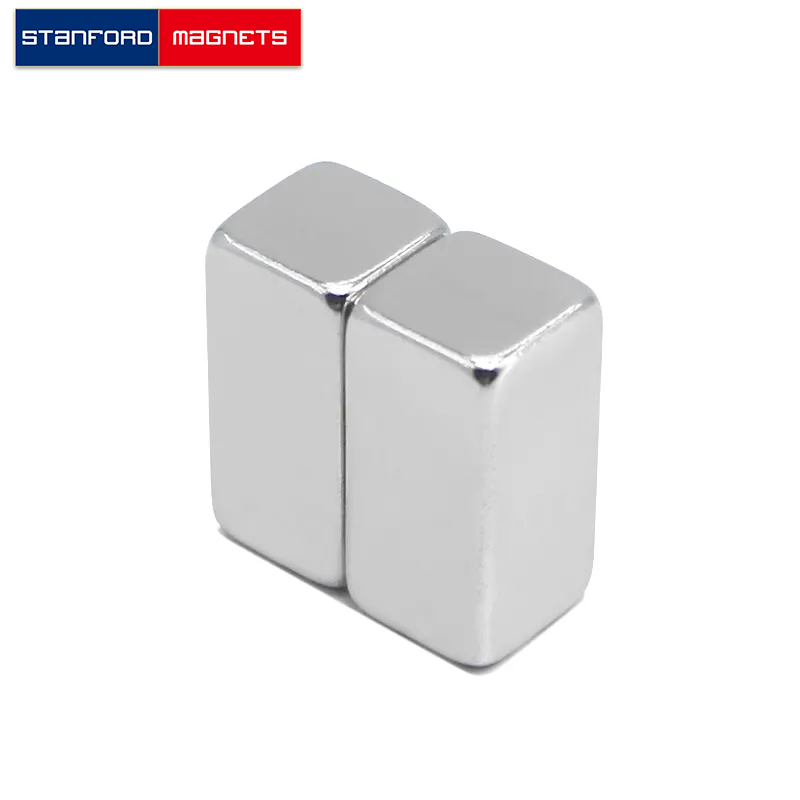

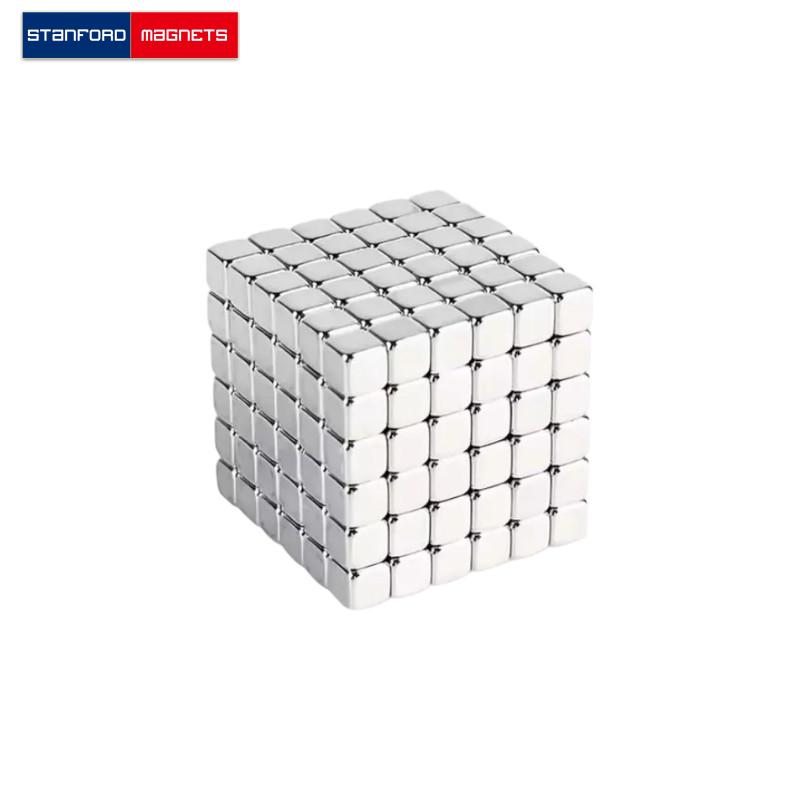

SMBN0387 Neodymium Block Magnet

Product ID: SMBN0387
Material: NdFeB
Shape: Block
Dimension: 3/16” x 3/16” x 3/16” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.029
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 2.83
Surface Field(Gauss): 6451
Magnetization Direction: Through Thickness
Magnetic Face: 3/16″ x 3/16″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0387 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/16″ × 3/16″ × 3/16″ thick, magnetized through thickness, with a tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0017875 lbs. It can pull up to 2.83 lbs steel. And the surface field is up to 6451 gausses.
