SMBN0393 Neodymium BLOCK Magnet | Stanford Magnets

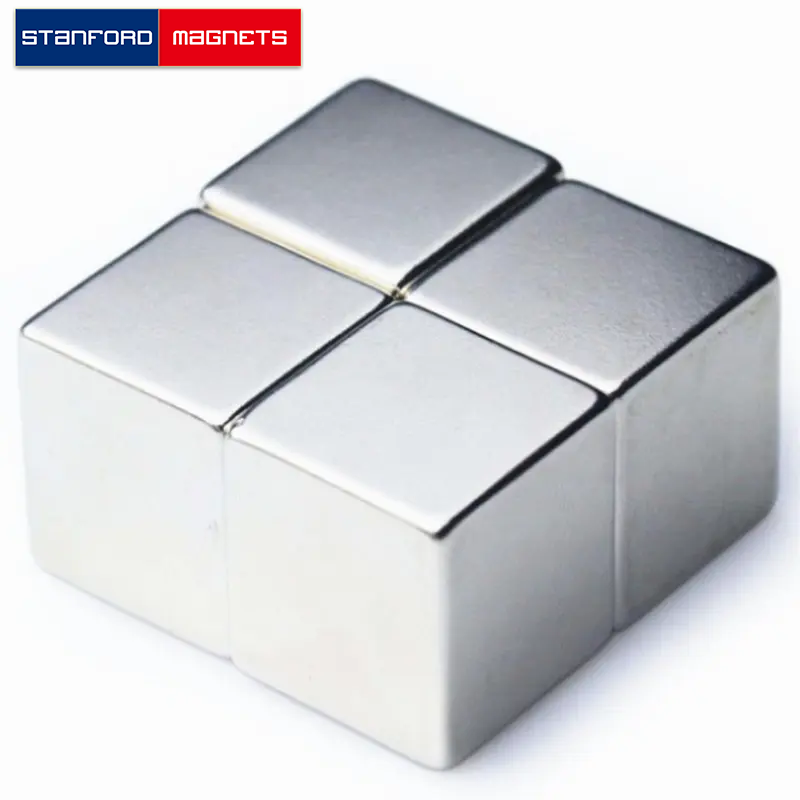

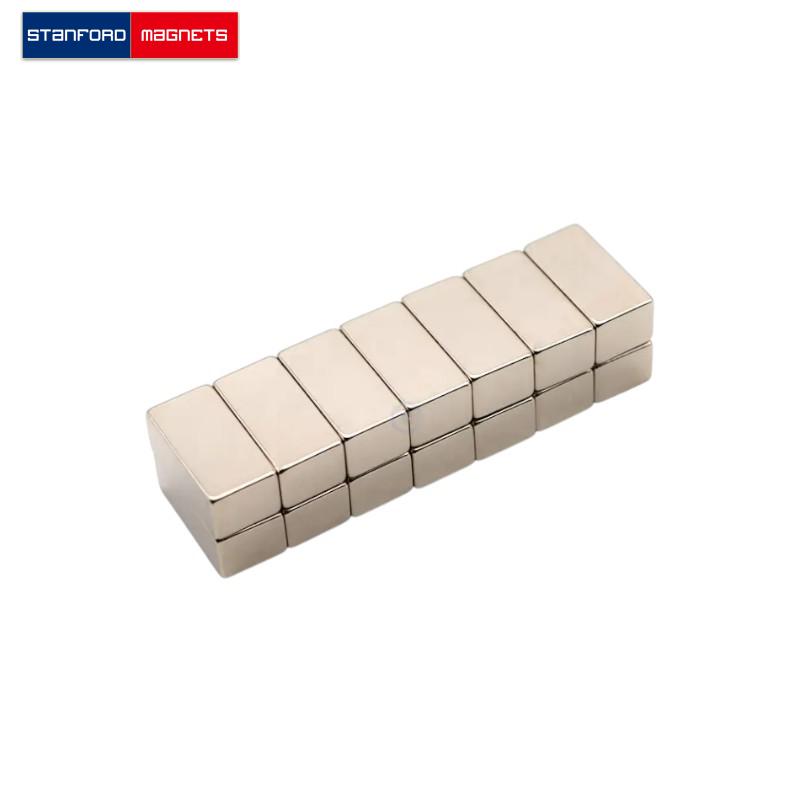

SMBN0393 Neodymium BLOCK Magnet

The SMBN0393 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/4″ × 1/4″ × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00211875 lbs. It can pull up to 2.84 lbs steel. And the surface field is up to 4400 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMBN0393
Material: NdFeB
Shape: Block
Dimension: 1/4” x 1/4” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.034
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 2.84
Surface Field(Gauss): 4400
Magnetization direction: Through Thickness
Magnetic Face: 1/4″ x 1/4″
Max Operating Temp(C/F): 80/176
