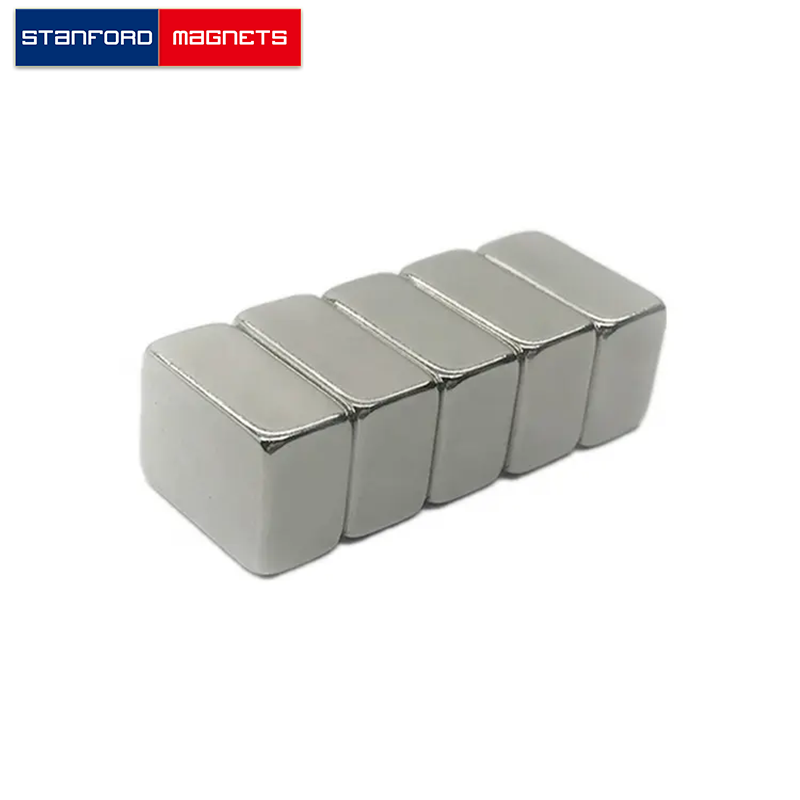

SMBN0394 Neodymium Block Magnet | Stanford Magnets

SMBN0394 Neodymium Block Magnet

Product ID: SMBN0394
Material: NdFeB
Shape: Block
Dimension: 1/4” x 1/4” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.034
Grade: N50
Coating: Nickel Coated Magnets
Pull Force(Lbs): 3.38
Surface Field(Gauss): 4833
Magnetization Direction: Through Thickness
Magnetic Face: 1/4″ x 1/4″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0394 block neodymium magnet is made from high performance N50 NdFeB, with Nickel coating. The dimension of this item is 1/4″ × 1/4″ × 1/8″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00211875 lbs. It can pull up to 3.38 lbs steel. And the surface field is up to 4833 gausses.
