SMBN0399 Neodymium Block Magnet | Stanford Magnets

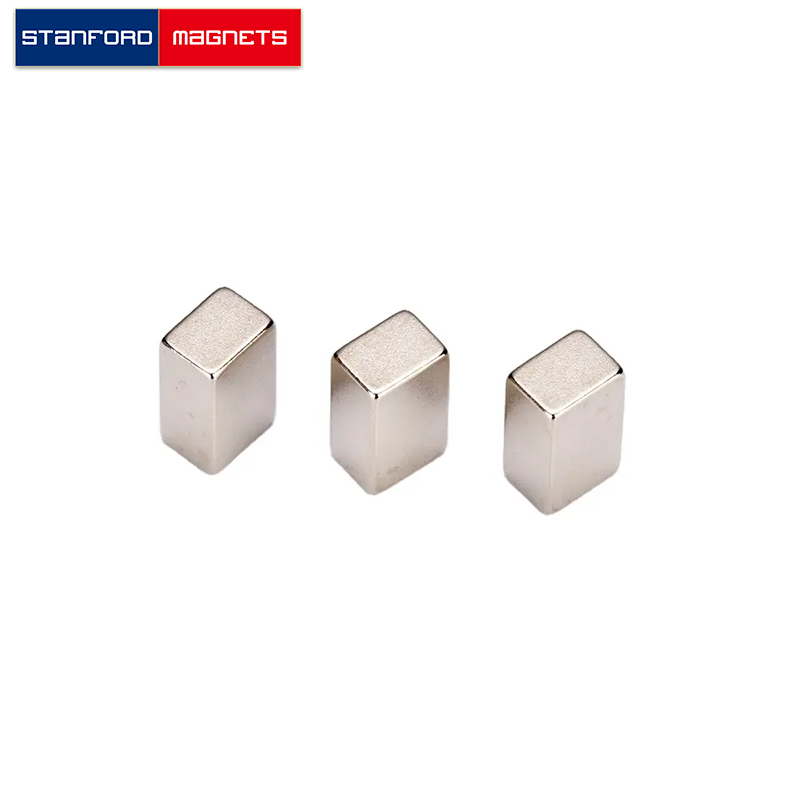

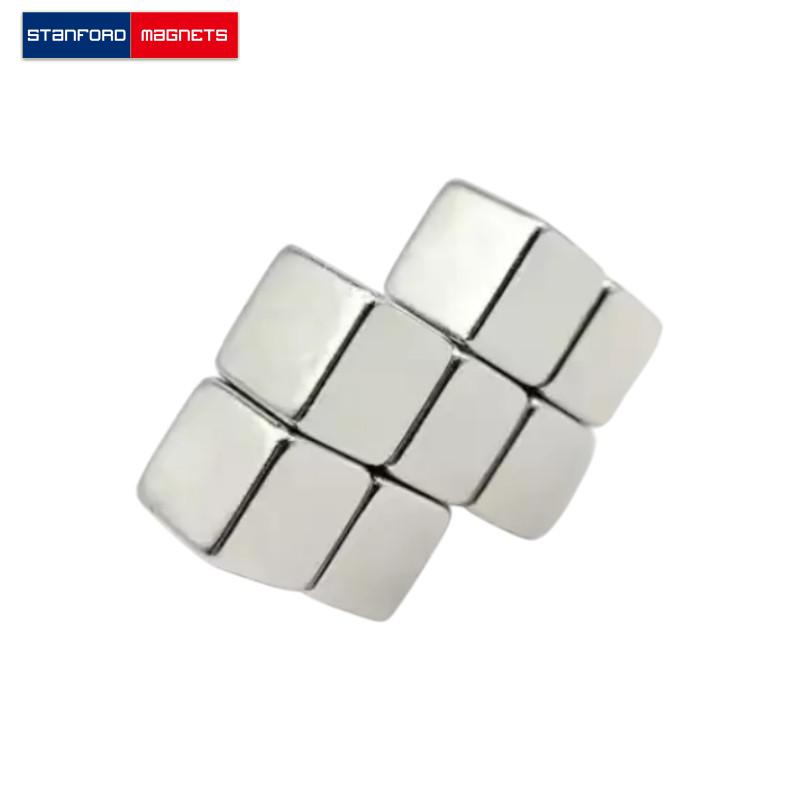

SMBN0399 Neodymium Block Magnet

Product ID: SMBN0399
Material: NdFeB
Shape: Block
Dimension: 1/4” x 1/4” x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.068
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 5.26
Surface Field(Gauss): 6451
Magnetization Direction: Through Thickness
Magnetic Face: 1/4″ x 1/4″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0399 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1/4″ × 1/4″ × 1/4″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00423125 lbs. It can pull up to 5.26 lbs steel. And the surface field is up to 6451 gausses.
