SMBN0404 Neodymium Block Magnet | Stanford Magnets

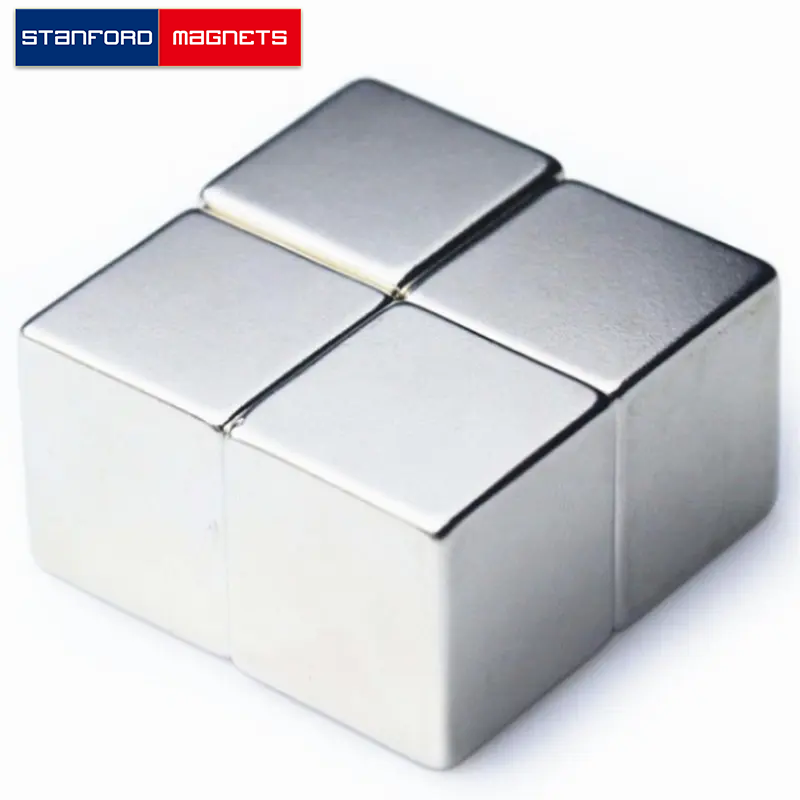

Name: SMBN0404 Neodymium Block Magnet
SKU: SMBN0404

SMBN0404 Neodymium Block Magnet

Product ID: SMBN0404
Material: NdFeB
Shape: Block
Dimension: 5/16” x 5/16” x 5/16” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.13
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 6.7
Surface Field(Gauss): 5754
Magnetization Direction: Through Thickness
Magnetic Face: 5/16″ x 5/16″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description

Description

The SMBN0404 neodymium block magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 5/16″ × 5/16″ × 5/16″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00825 lbs. It can pull up to 6.7 lbs steel. And the surface field is up to 5754 gauss.
