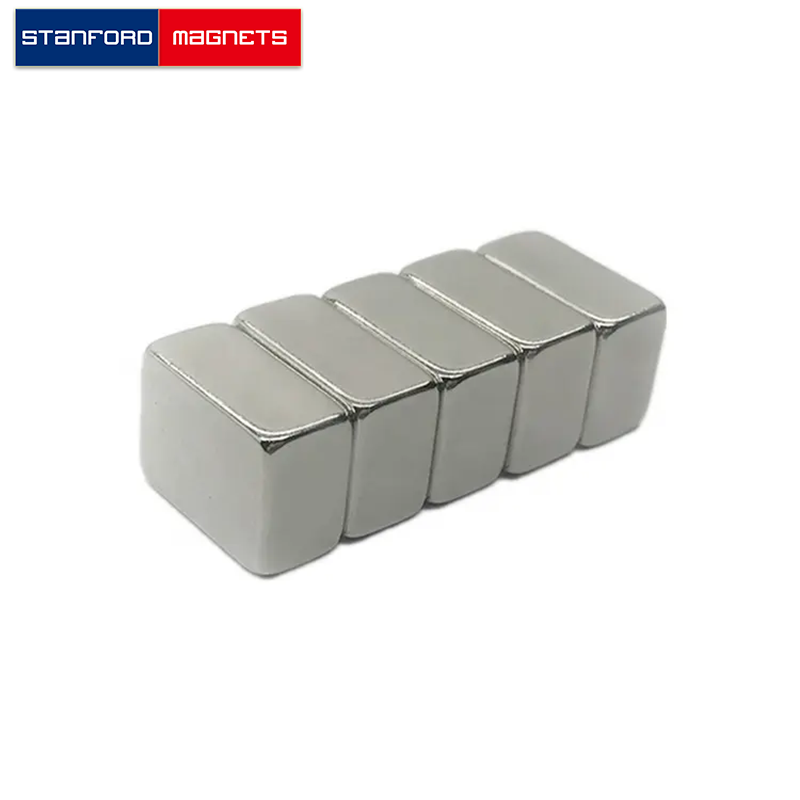

SMBN0410 Neodymium Block Magnet

Product ID: SMBN0410
Material: NdFeB
Shape: Block
Dimension: 3/8” x 3/16” x 3/16” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.057
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 4.11
Surface Field(Gauss): 5248
Magnetization Direction: Through Thickness
Magnetic Face: 3/8″ x 3/16″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


The SMBN0410 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ × 3/16″ × 3/16″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0035625 lbs. It can pull up to 4.11 lbs steel. And the surface field is up to 5248 gausses.
