SMBN0411 Neodymium Block Magnet | Stanford Magnets

SMBN0411 Neodymium Block Magnet

Product ID: SMBN0411
Material: NdFeB
Shape: Block
Dimension: 3/8” x 1/4” x 1/16” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.025
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 1.91
Surface Field(Gauss): 2359
Magnetization Direction: Through Thickness
Magnetic Face: 3/8″ x 1/4″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

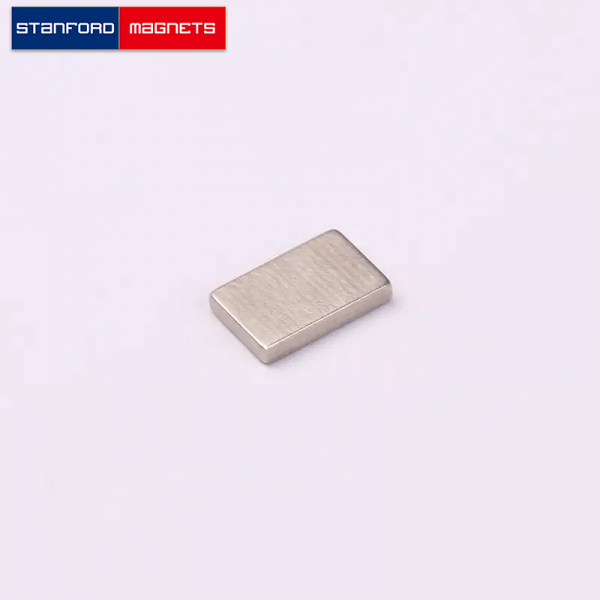

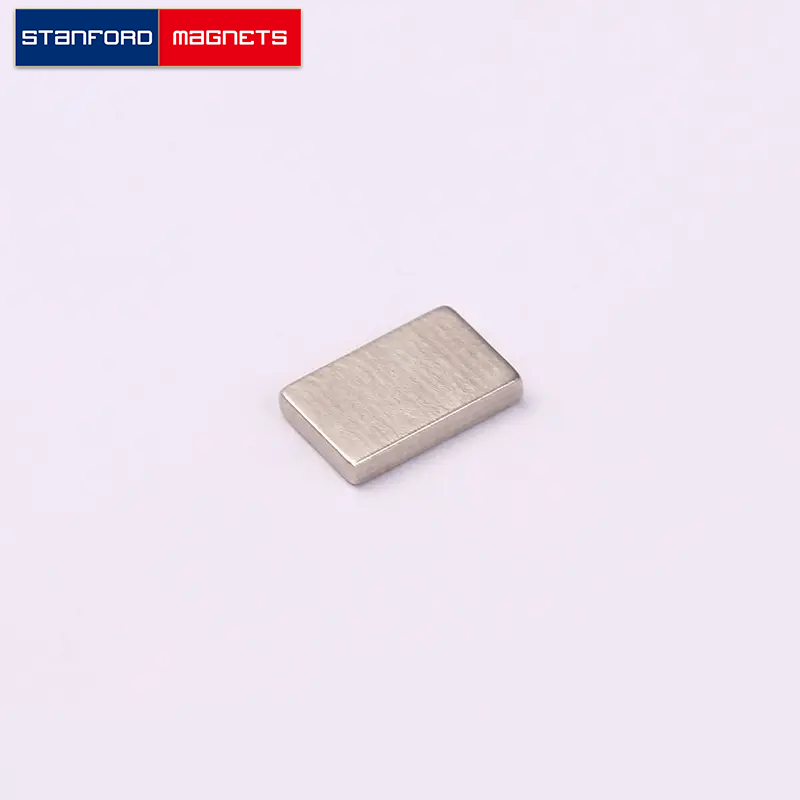

The SMBN0411 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ × 1/4″ × 1/16″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0015875 lbs. It can pull up to 1.91 lbs steel. And the surface field is up to 2359 gauss.
