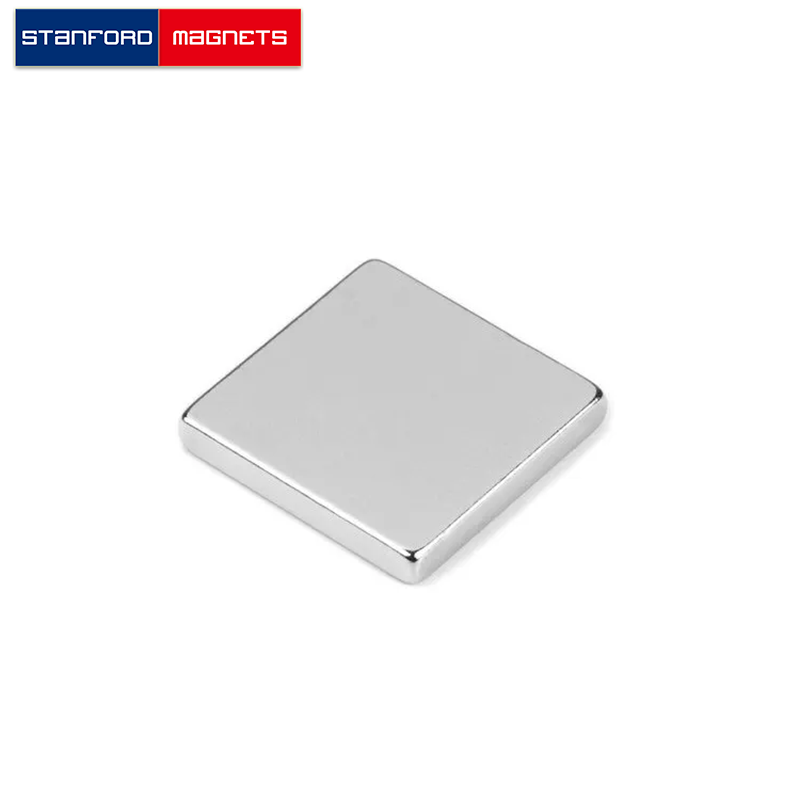

SMBN0414 Neodymium BLOCK Magnet

The SMBN0414 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ × 3/8″ × 1/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00238125 lbs. It can pull up to 2.5 lbs steel. And the surface field is up to 1895 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0414
Material: NdFeB
Shape: Block
Dimension: 3/8” x 3/8” x 1/16” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.038
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 2.5
Surface Field(Gauss): 1895
Magnetization direction: Through Thickness
Magnetic Face: 3/8″ x 3/8″
Max Operating Temp(C/F): 80/176
