SMBN0415 Neodymium BLOCK Magnet | Stanford Magnets

SMBN0415 Neodymium BLOCK Magnet

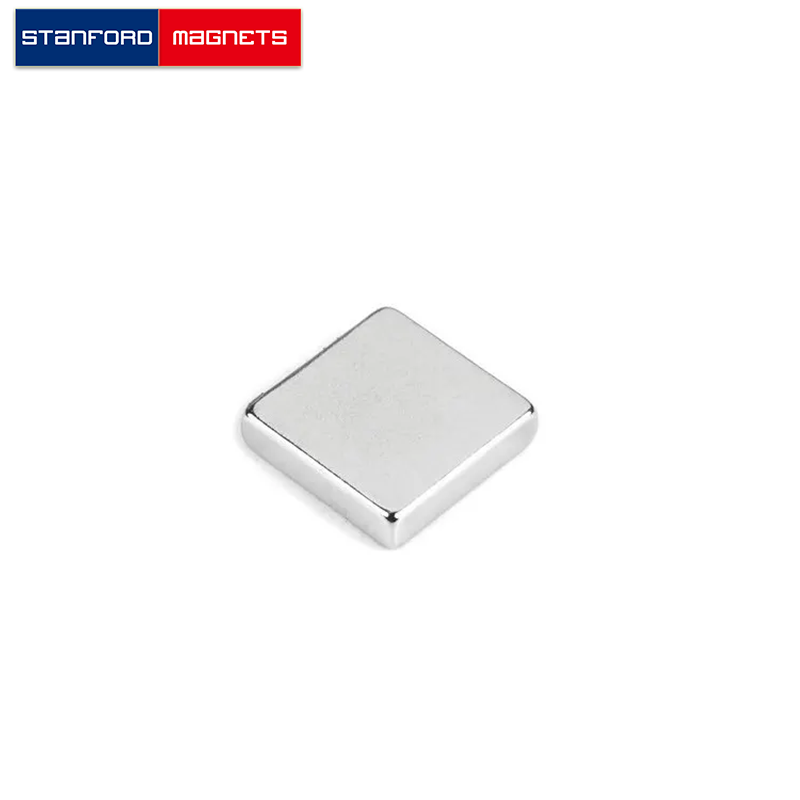

The SMBN0415 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ × 3/8″ × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0047625 lbs. It can pull up to 5.19 lbs steel. And the surface field is up to 3387 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMBN0415
Material: NdFeB
Shape: Block
Dimension: 3/8” x 3/8” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.076
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 5.19
Surface Field(Gauss): 3387
Magnetization direction: Through Thickness
Magnetic Face: 3/8″ x 3/8″
Max Operating Temp(C/F): 80/176
