SMBN0416 Neodymium Block Magnet | Stanford Magnets

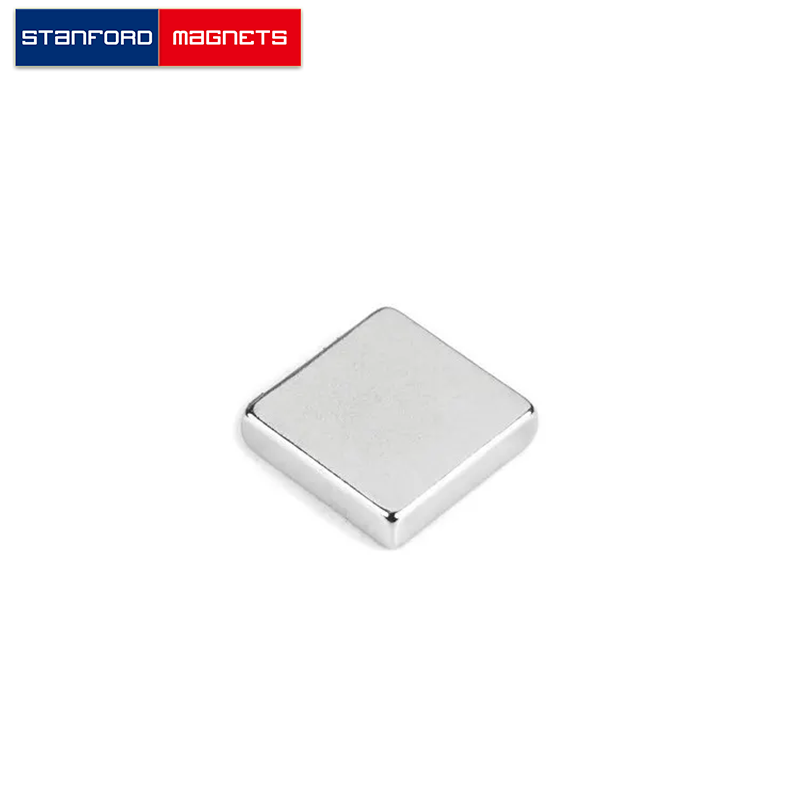

SMBN0416 Neodymium Block Magnet

Product ID: SMBN0416
Material: NdFeB
Shape: Block
Dimension: 3/8” x 3/8” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.076
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 6.43
Surface Field(Gauss): 3798
Magnetization Direction: Through Thickness
Magnetic Face: 3/8″ x 3/8″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0416 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/8″ × 3/8″ × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0047625 lbs. It can pull up to 6.43 lbs steel. And the surface field is up to 3798 gausses.
