SMBN0436 Neodymium Block Magnet

Product ID: SMBN0436
Material: NdFeB
Shape: Block
Dimension: 1/2” x 1/4” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.27
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 9.67
Surface Field(Gauss): 6143
Magnetization Direction: Through Thickness
Magnetic Face: 1/2″ x 1/4″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

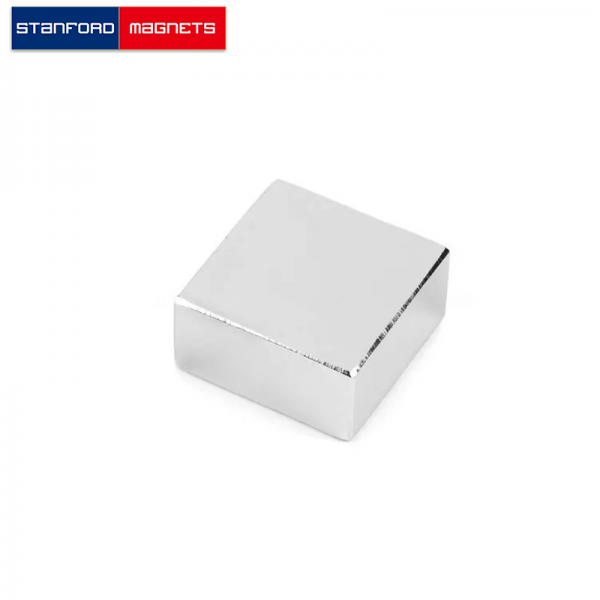

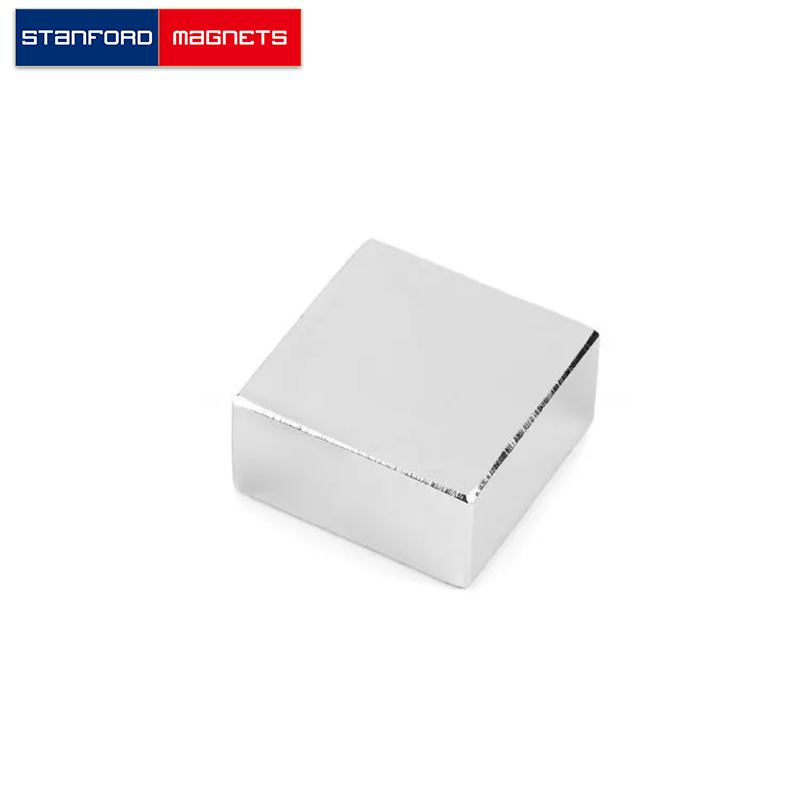

The SMBN0436 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ × 1/4″ × 1/2″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.016875 lbs. It can pull up to 9.67 lbs steel. And the surface field is up to 6143 gausses.
