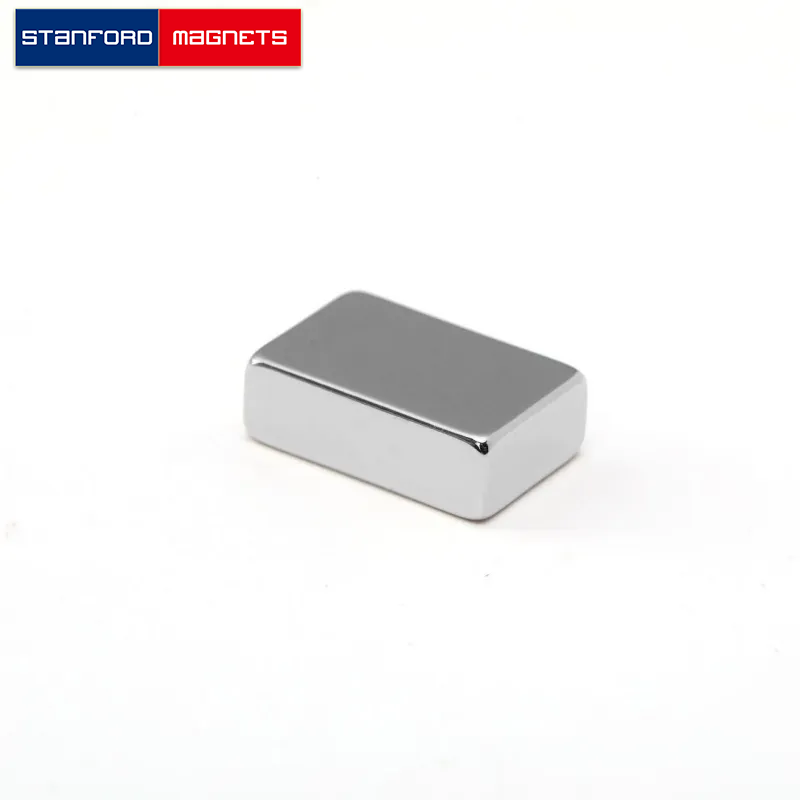

SMBN0441 Neodymium Block Magnet

Product ID: SMBN0441
Material: NdFeB
Shape: Block
Dimension: 1/2” x 3/8” x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.2
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 10.51
Surface Field(Gauss): 4759
Magnetization Direction: Through Thickness
Magnetic Face: 1/2″ x 3/8″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0441 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ × 3/8″ × 1/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0126875 lbs. It can pull up to 10.51 lbs steel. And the surface field is up to 4759 gausses.
