SMBN0444 Neodymium Block Magnet

Product ID: SMBN0444
Material: NdFeB
Shape: Block
Dimension: 1/2” x 1/2” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.14
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 7.34
Surface Field(Gauss): 2704
Magnetization Direction: Through Thickness
Magnetic Face: 1/2″ x 1/2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

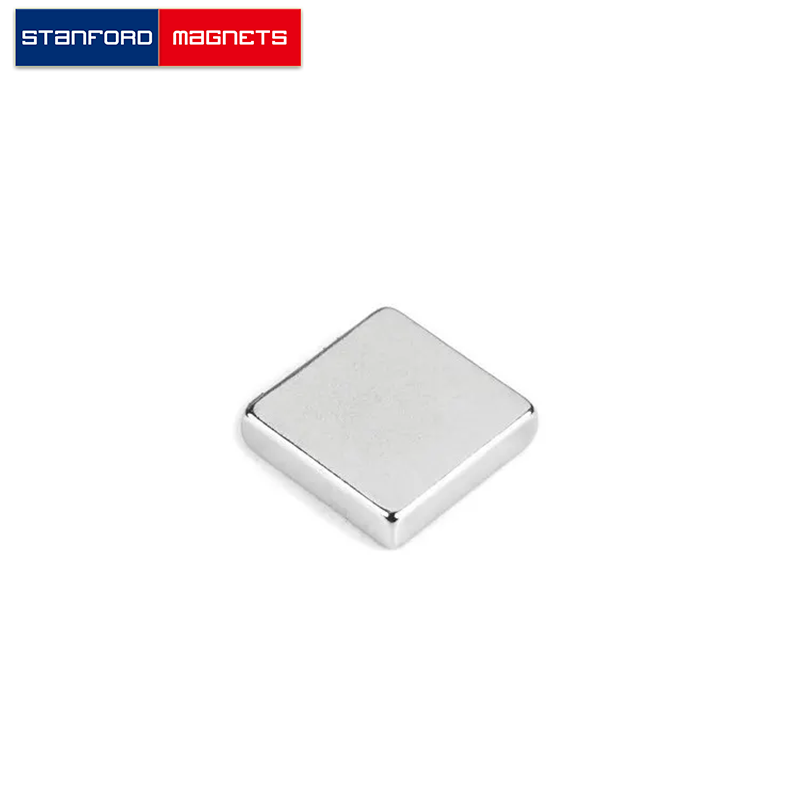

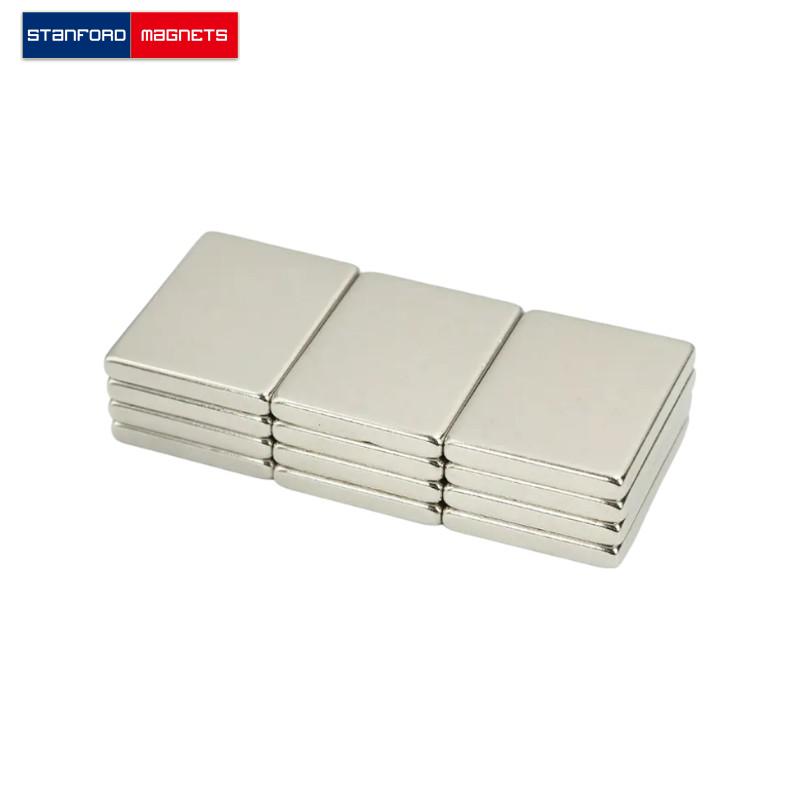

The SMBN0444 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ × 1/2″ × 1/8″ thick, magnetized through thickness, with a tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0085 lbs. It can pull up to 7.34 lbs steel. And the surface field is up to 2704 gauss.
