SMBN0449 Neodymium Block Magnet | Stanford Magnets

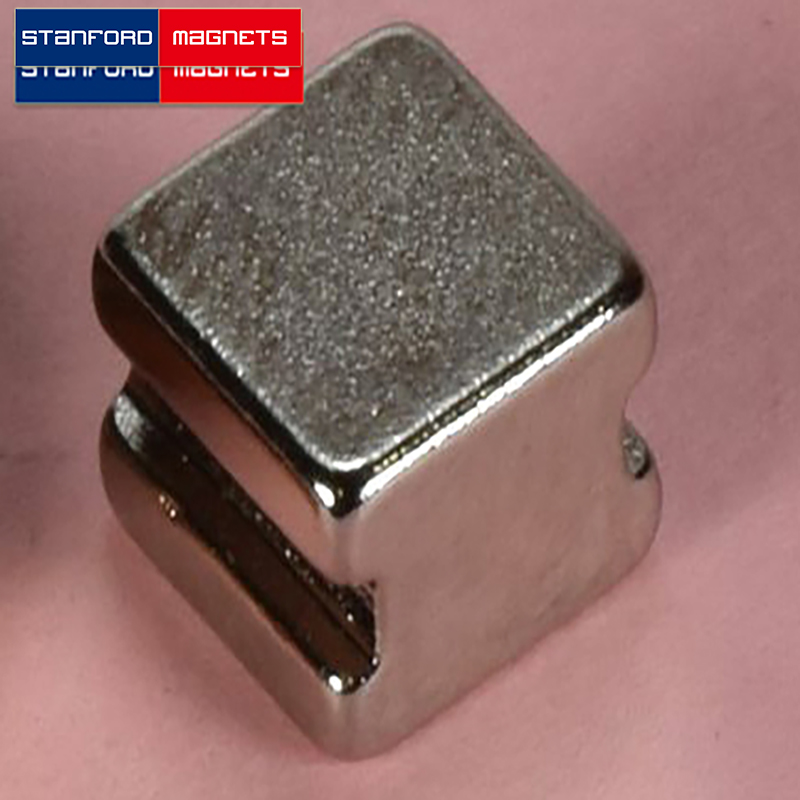

SMBN0449 Neodymium Block Magnet

Product ID: SMBN0449
Material: NdFeB
Shape: Block
Dimension: 1/2” length x 1/2” width x 1/4” thick , with step IN
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.25
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 12.22
Surface Field(Gauss): 4594
Magnetization Direction: Through Thickness
Magnetic Face: 1/2″ length x 1/2″ width
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0449 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ length × 1/2″ width × 1/4″ thick, with step IN, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.01575 lbs. It can pull up to 12.22 lbs steel. And the surface field is up to 4594 gausses.
