SMBN0454 Neodymium Countersunk Magnet - Stanford Magnets

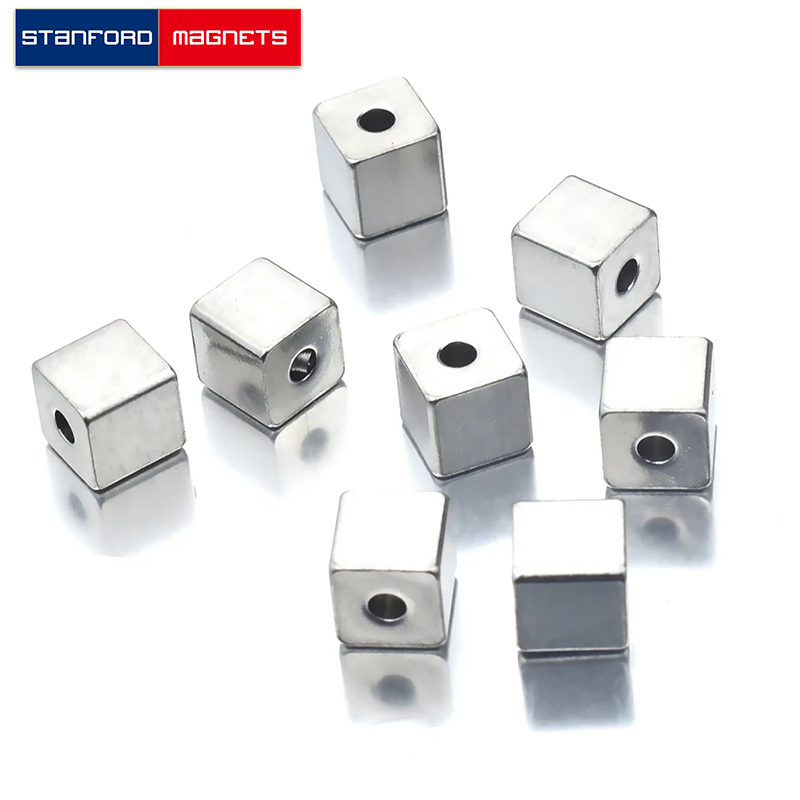

SMBN0454 Neodymium Countersunk Magnet

The SMBN0454 BLOCK neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1/2″ × 1/2″ × 1/2″ (- 0.127″ hole)
Hole perpendicular to magnetization direction, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.030125 lbs. It can pull up to 21.48 lbs steel. And the surface field is up to 6451 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0454
Material: NdFeB
Shape: Countersunk
Dimension: 1/2” x 1/2” x 1/2” (- 0.127” hole) Hole perpendicular to magnetization direction
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.48
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 21.48
Surface Field(Gauss): 6451
Magnetization direction: Through Thickness
Magnetic Face: 1/2″ x 1/2″
Max Operating Temp(C/F): 80/176
