SMBN0455 Neodymium Countersunk Magnet - Stanford Magnets

SMBN0455 Neodymium Countersunk Magnet

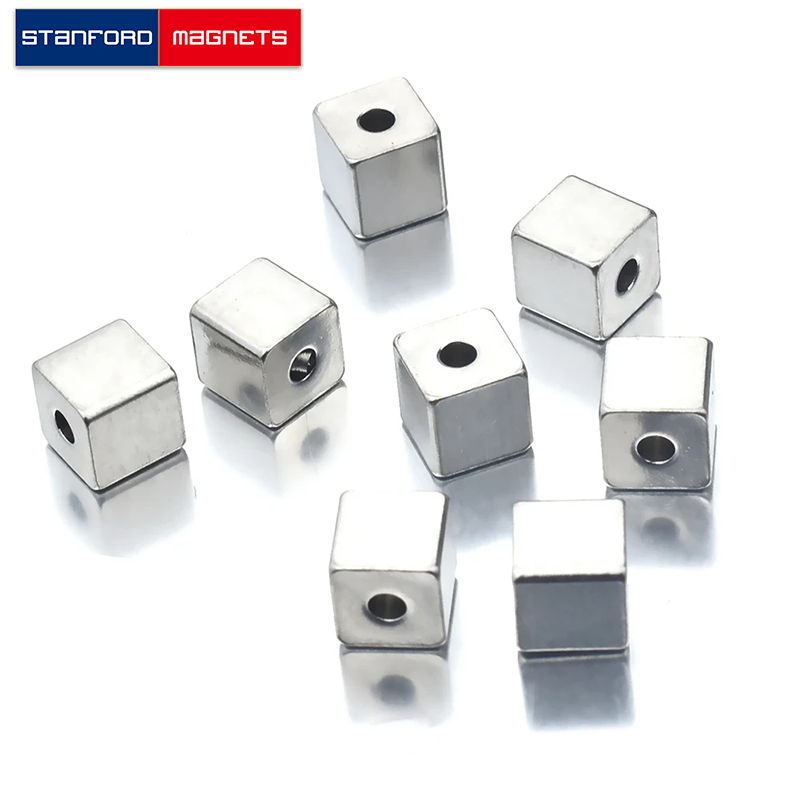

The SMBN0455 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ × 1/2″ × 1/2″ (- 3/16″ hole), magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.030125 lbs. It can pull up to 16.5 lbs steel. And the surface field is up to 5754 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0455
Material: NdFeB
Shape: Countersunk
Dimension: 1/2” x 1/2” x 1/2” (- 3/16” hole)
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.48
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 16.5
Surface Field(Gauss): 5754
Magnetization direction: Through Thickness
Magnetic Face: 1/2″ x 1/2″
Max Operating Temp(C/F): 80/176
