SMBN0458 Neodymium BLOCK Magnet - Stanford Magnets

Name: SMBN0458 Neodymium BLOCK Magnet
SKU: SMBN0458

SMBN0458 Neodymium BLOCK Magnet

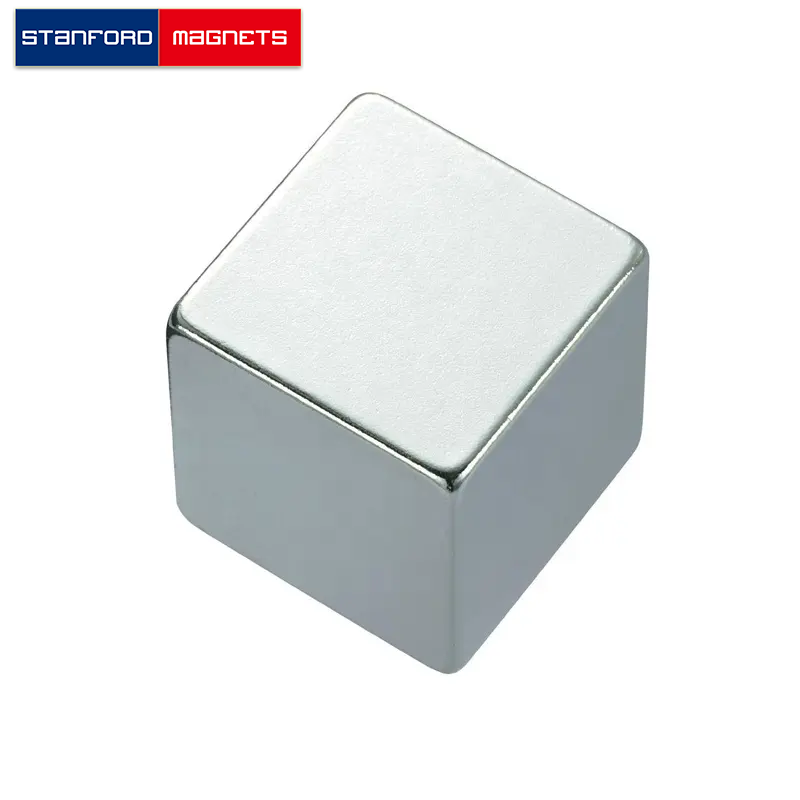

The SMBN0458 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 9/16″ × 9/16″ × 9/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.04825 lbs. It can pull up to 23.66 lbs steel. And the surface field is up to 5754 gauss.

INQUIRY Can't Find The Size

Follow Us On

Description

Description

Product ID: SMBN0458
Material: NdFeB
Shape: Block
Dimension: 9/16” x 9/16” x 9/16” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.77
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 23.66
Surface Field(Gauss): 5754
Magnetization direction: Through Thickness
Magnetic Face: 9/16″ x 9/16″
Max Operating Temp(C/F): 80/176
