SMBN0460 Neodymium Block Magnet | Stanford Magnets

SMBN0460 Neodymium Block Magnet

Product ID: SMBN0460
Material: NdFeB
Shape: Block
Dimension: 5/8” x 5/8” x 5/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.06
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 27.83
Surface Field(Gauss): 5754
Magnetization Direction: Through Thickness
Magnetic Face: 5/8″ x 5/8″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

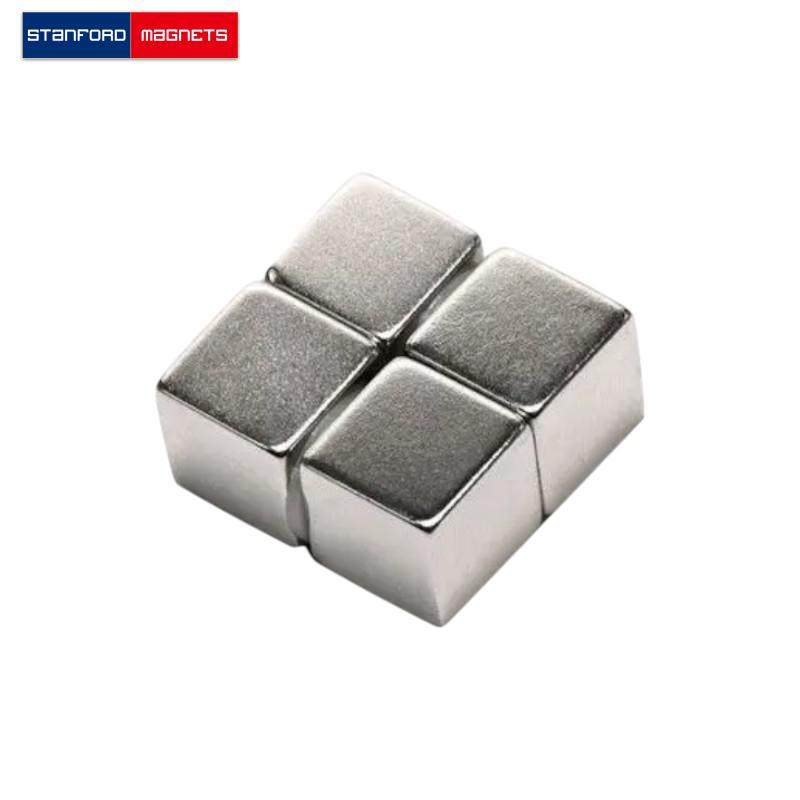

The SMBN0460 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 5/8″ × 5/8″ × 5/8″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.06625 lbs. It can pull up to 27.83 lbs steel. And the surface field is up to 5754 gausses.
