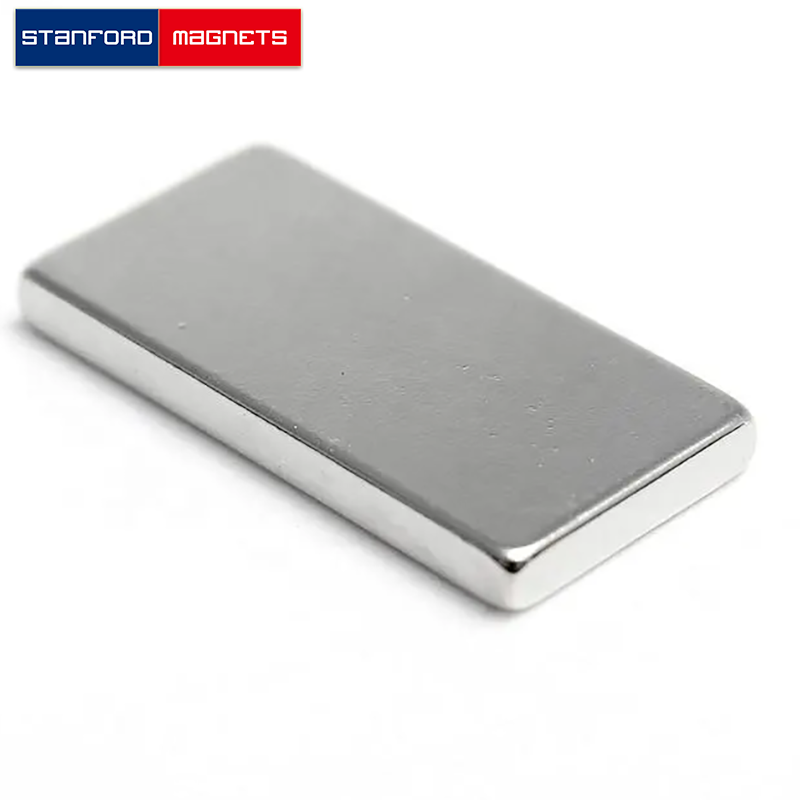

SMBN0461 Neodymium Block Magnet

Product ID: SMBN0461
Material: NdFeB
Shape: Block
Dimension: 3/4” x 1/16” x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.051
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 3.99
Surface Field(Gauss): 6913
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ x 1/16″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0461 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/4″ × 1/16″ × 1/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.003175 lbs. It can pull up to 3.99 lbs steel. And the surface field is up to 6913 gausses.
