SMBN0467 Neodymium Block Magnet | Stanford Magnets

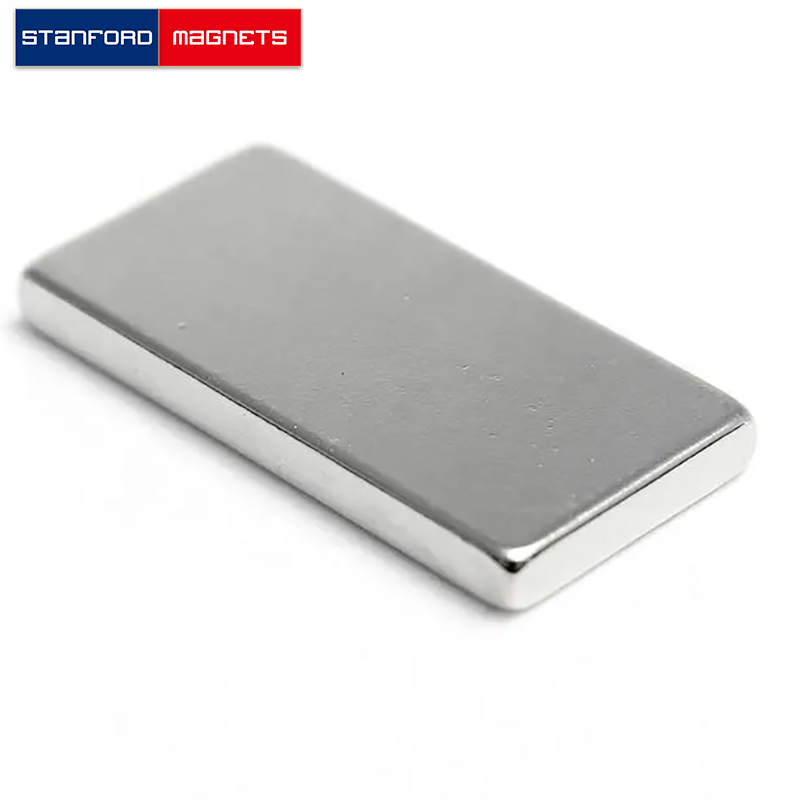

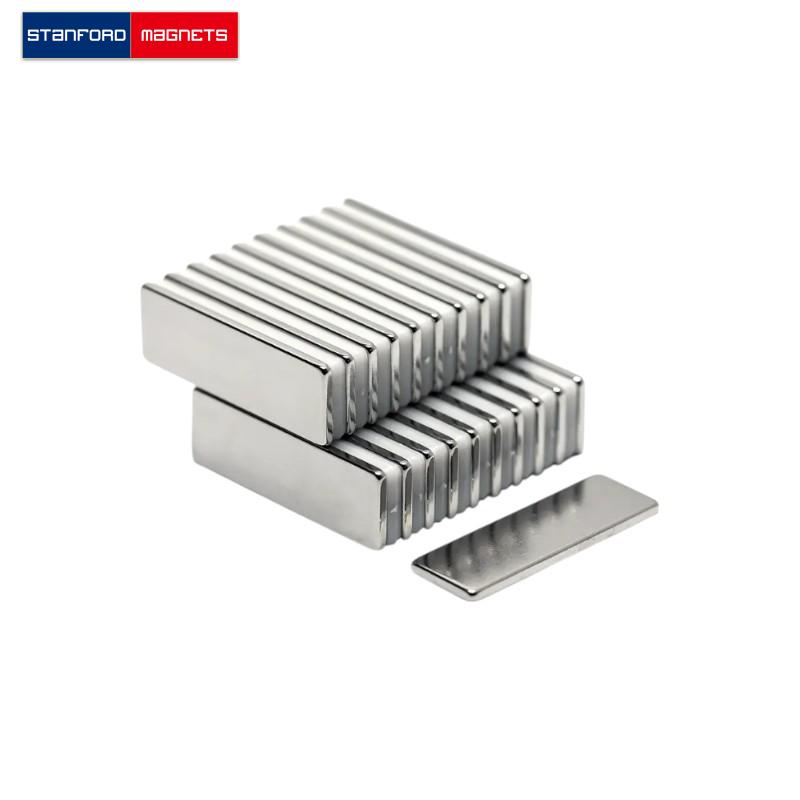

SMBN0467 Neodymium Block Magnet

Product ID: SMBN0467
Material: NdFeB
Shape: Block
Dimension: 3/4” x 3/8” x 1/32” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.038
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 1.4
Surface Field(Gauss): 776
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ x 3/8″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0467 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ × 3/8″ × 1/32″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.00238125 lbs. It can pull up to 1.4 lbs steel. And the surface field is up to 776 gauss.
