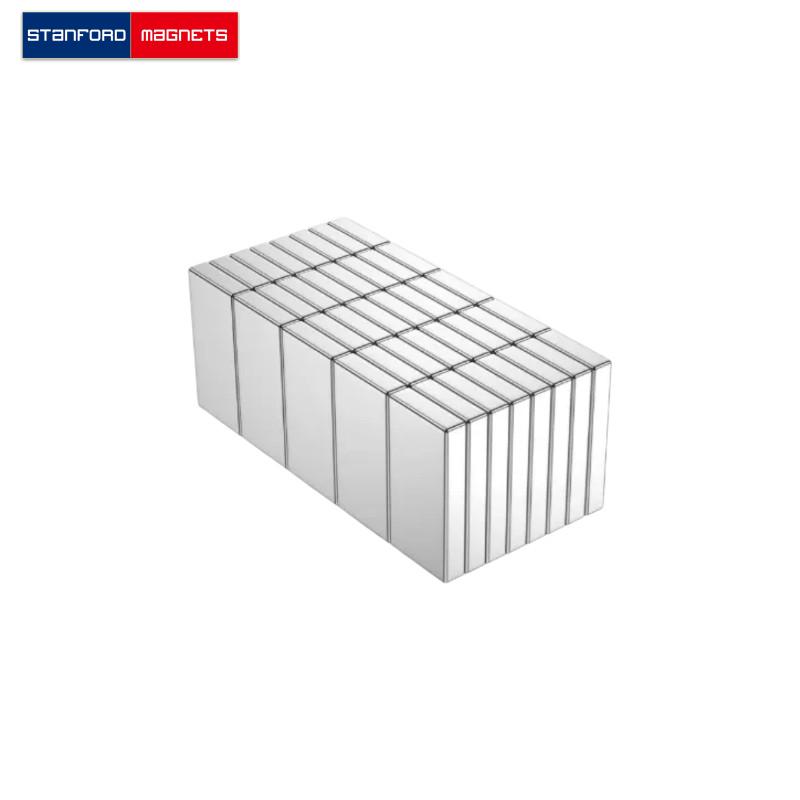

SMBN0469 Neodymium Block Magnet | Stanford Magnets

SMBN0469 Neodymium Block Magnet

Product ID: SMBN0469
Material: NdFeB
Shape: Block
Dimension: 3/4” x 3/8” x 1/16” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.076
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 4.77
Surface Field(Gauss): 1698
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ x 3/8″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0469 block neodymium magnet is made from high-performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/4″ × 3/8″ × 1/16″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0047625 lbs. It can pull up to 4.77 lbs steel. And the surface field is up to 1698 gauss.
