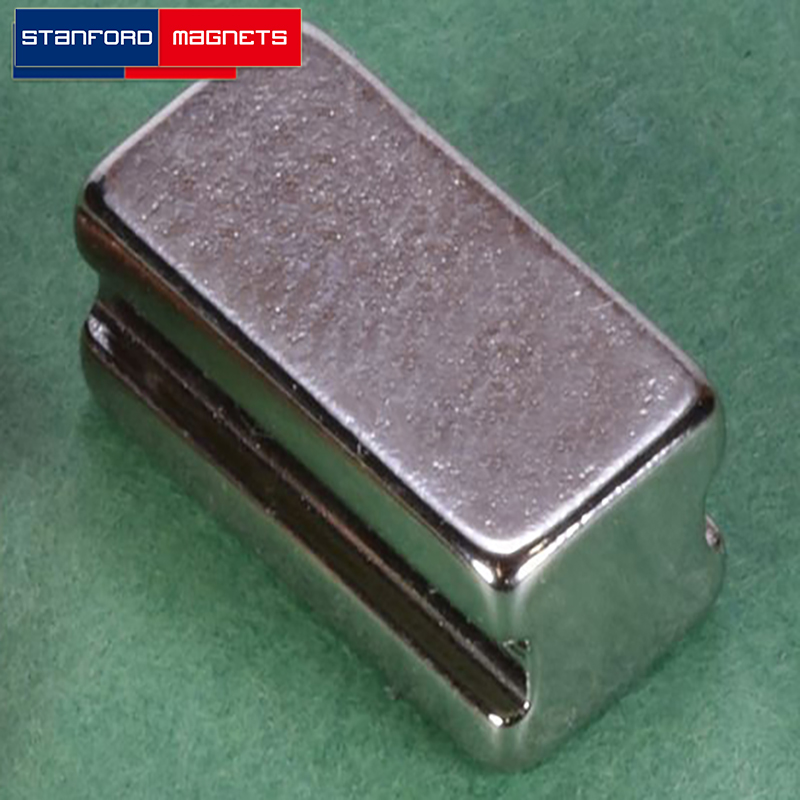

SMBN0474 Neodymium Block Magnet

Product ID: SMBN0474
Material: NdFeB
Shape: Block
Dimension: 3/8” length x 3/4” width x 1/4” thick , with step IN
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.28
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 13.01
Surface Field(Gauss): 4528
Magnetization Direction: Through Thickness
Magnetic Face: 3/8″ length x 3/4″ width
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0474 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/8″ length × 3/4″ width × 1/4″ thick, with step IN, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ x ±0.004″. The weight of this super strong neodymium magnet is 0.01725 lbs. It can pull up to 13.01 lbs steel. And the surface field is up to 4528 gausses.
