SMBN0477 Neodymium BLOCK Magnet

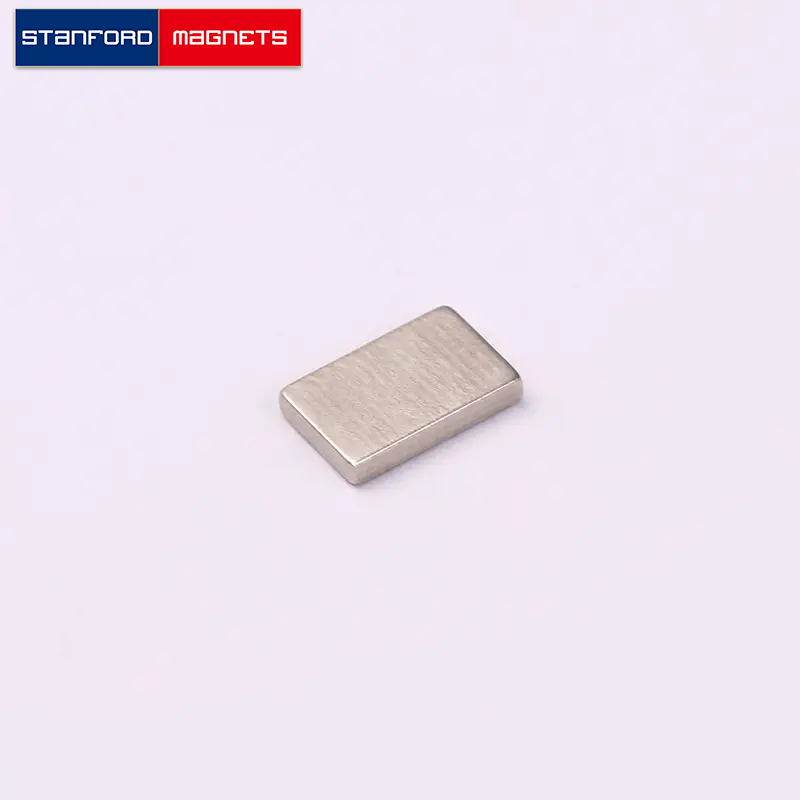

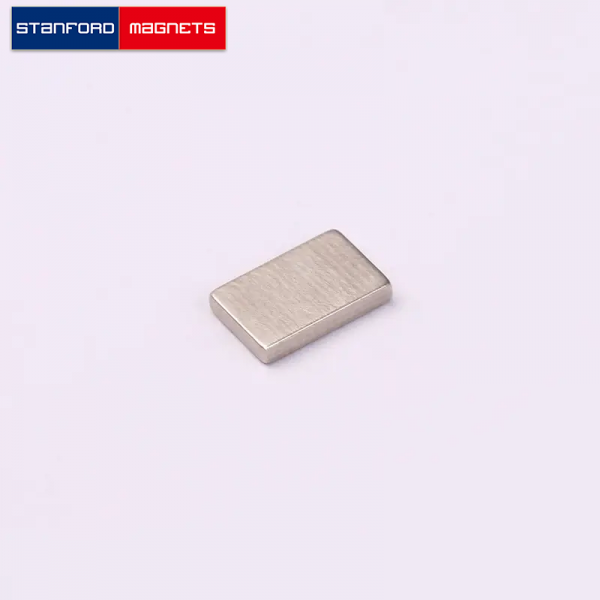

The SMBN0477 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ × 1/2″ × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0126875 lbs. It can pull up to 9.02 lbs steel. And the surface field is up to 2343 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0477
Material: NdFeB
Shape: Block
Dimension: 3/4” x 1/2” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.2
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 9.02
Surface Field(Gauss): 2343
Magnetization direction: Through Thickness
Magnetic Face: 3/4″ x 1/2″
Max Operating Temp(C/F): 80/176
