SMBN0478 Neodymium Block Magnet

Product ID: SMBN0478
Material: NdFeB
Shape: Block
Dimension: 3/4” x 1/2” x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.41
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 17.16
Surface Field(Gauss): 3957
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ x 1/2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

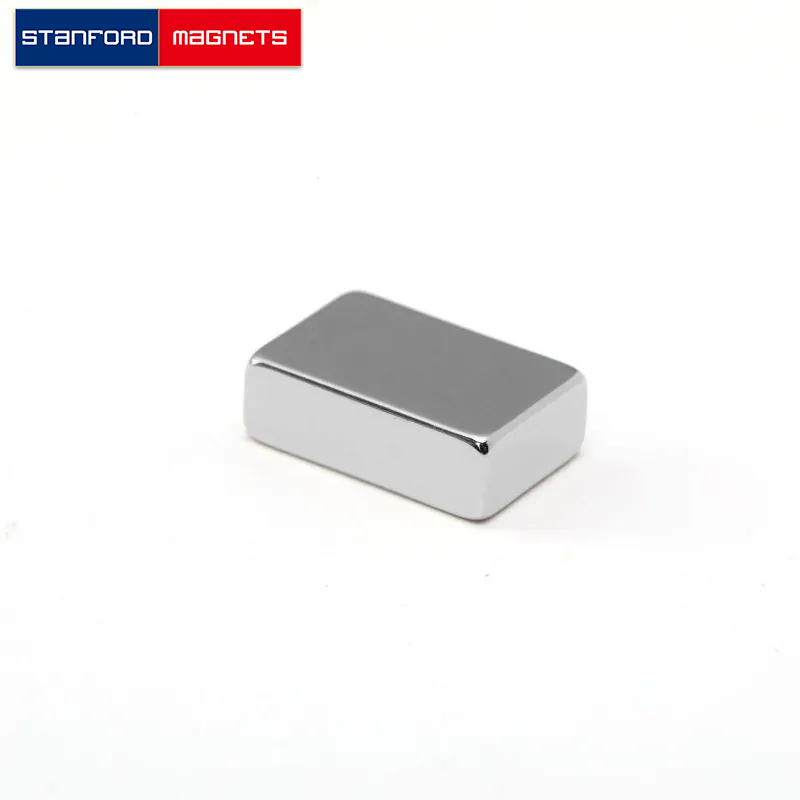

The SMBN0478 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ × 1/2″ × 1/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0254375 lbs. It can pull up to 17.16 lbs steel. And the surface field is up to 3957 gausses.
