SMBN0483 Neodymium Block Magnet

Product ID: SMBN0483

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL DATA SHEET

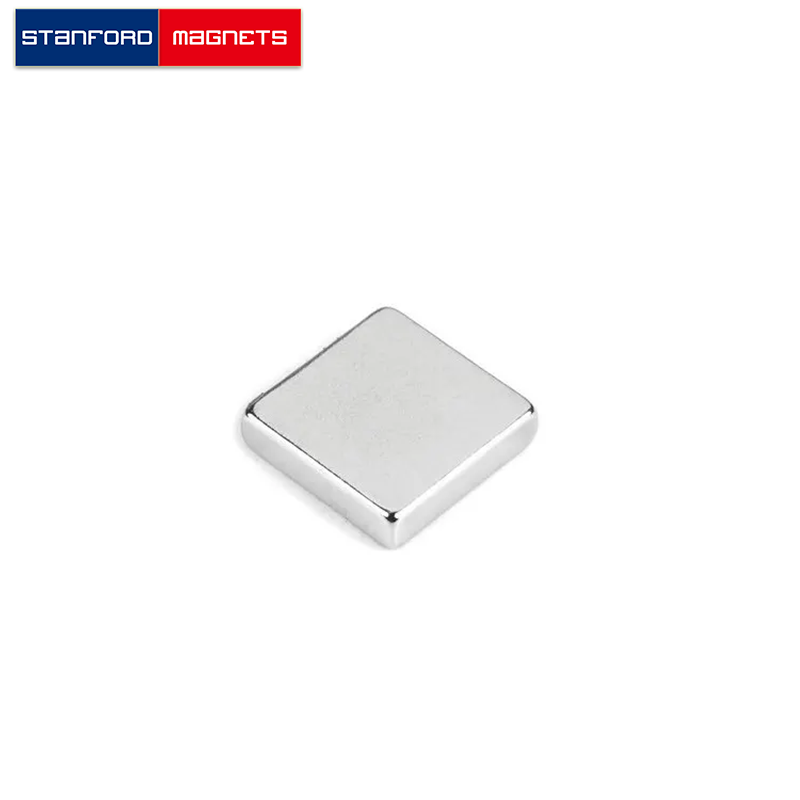

The SMBN0483 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/4" × 3/4" × 1/8" thick, magnetized through thickness, with the tolerance of ±0.004" × ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.0190625 lbs. It can pull up to 13.53 lbs steel. And the surface field is up to 2125 gauss.

Download a PDF Specification Sheet
