SMBN0488 Neodymium Block Magnet

Product ID: SMBN0488
Material: NdFeB
Shape: Block
Dimension: 3/4” length x 3/4” width x 3/8” thick , with step IN
Tolerances: ±0.004″ x ±0.004″ × ±0.004″
Weight(Oz.): 0.86
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 28.38
Surface Field(Gauss): 4537
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ length x 3/4″ width
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

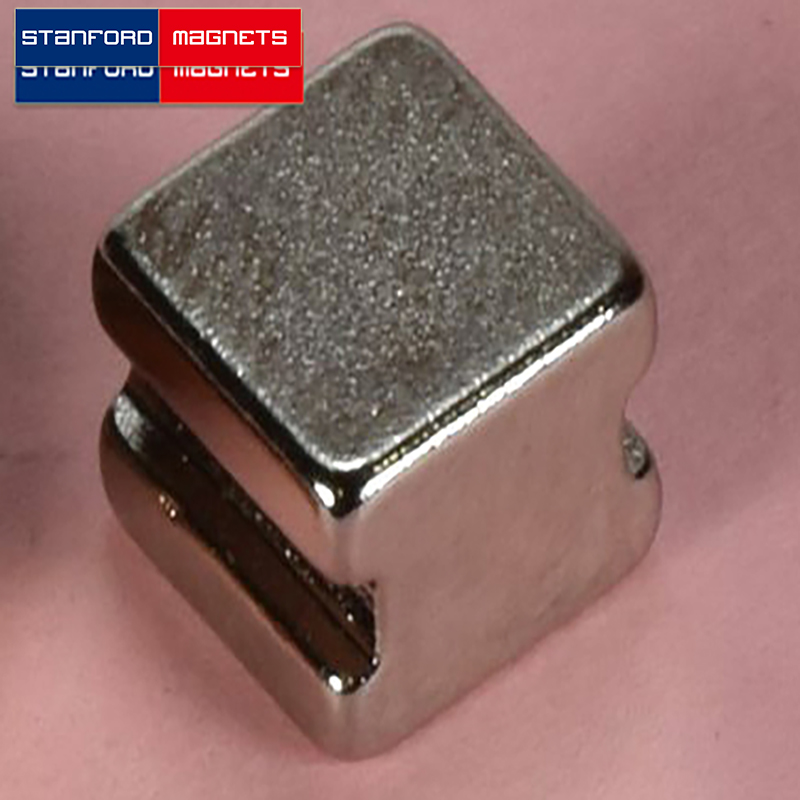

The SMBN0488 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ length × 3/4″ width × 3/8″ thick, with step IN, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.054 lbs. It can pull up to 28.38 lbs steel. And the surface field is up to 4537 gausses.
