SMBN0491 Neodymium BLOCK Magnet | Stanford Magnets

SMBN0491 Neodymium BLOCK Magnet

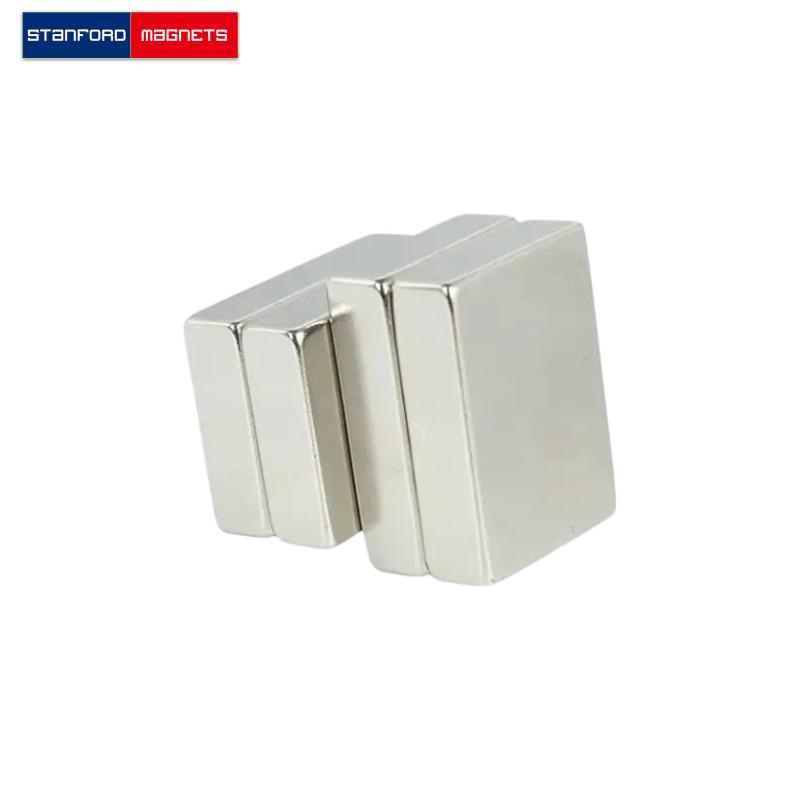

The SMBN0491 BLOCK neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/4″ × 3/4″ × 1/2″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.07625 lbs. It can pull up to 42.66 lbs steel. And the surface field is up to 5665 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMBN0491
Material: NdFeB
Shape: Block
Dimension: 3/4” x 3/4” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.22
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 42.66
Surface Field(Gauss): 5665
Magnetization direction: Through Thickness
Magnetic Face: 3/4″ x 3/4″
Max Operating Temp(C/F): 80/176
