SMBN0498 Neodymium Block Magnet

Product ID: SMBN0498

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL

TECHNICAL DATA SHEET

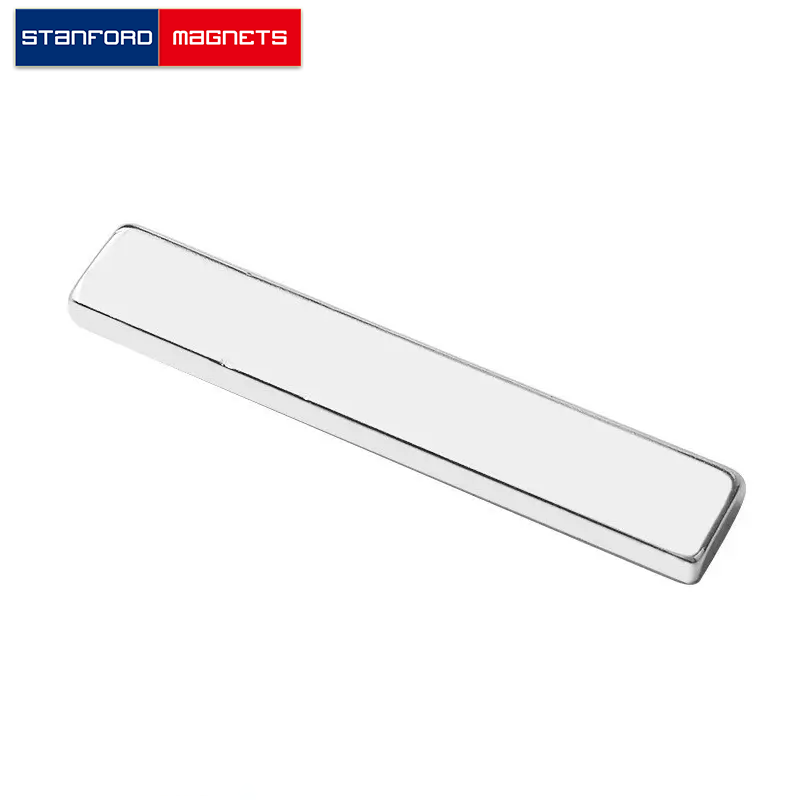

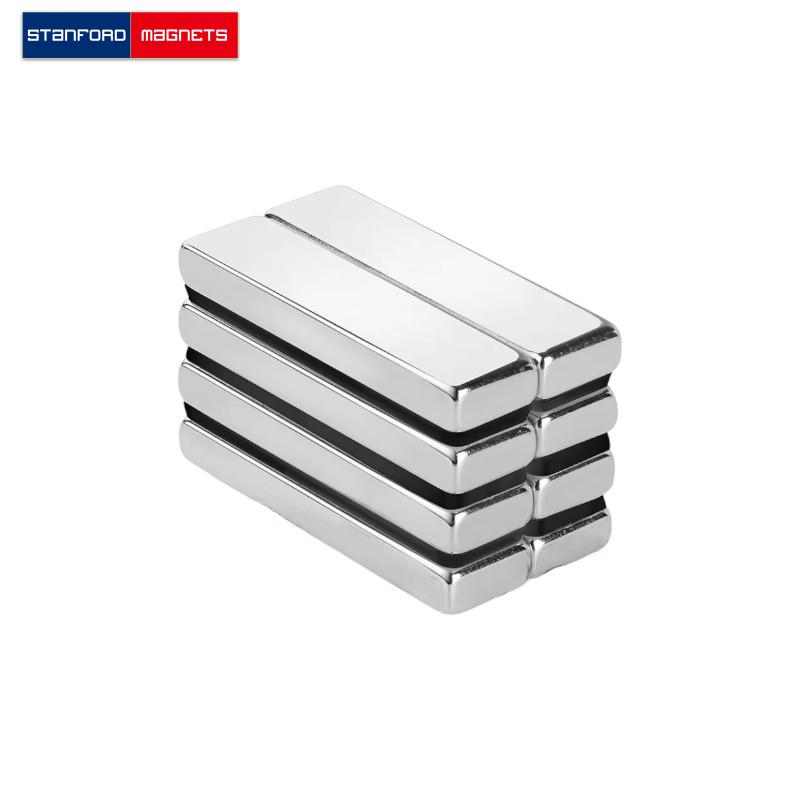

The SMBN0498 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1" × 1/4" × 1/16" thick, magnetized through thickness, with the tolerance of ±0.004" × ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.0042375 lbs. It can pull up to 4.45 lbs steel. And the surface field is up to 2256 gauss.

Download a PDF Specification Sheet
