SMBN0501 Neodymium Block Magnet

Product ID: SMBN0501
Material: NdFeB
Shape: Block
Dimension: 1” x 1/4” x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.27
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 16.28
Surface Field(Gauss): 5461
Magnetization Direction: Through Thickness
Magnetic Face: 1″ x 1/4″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

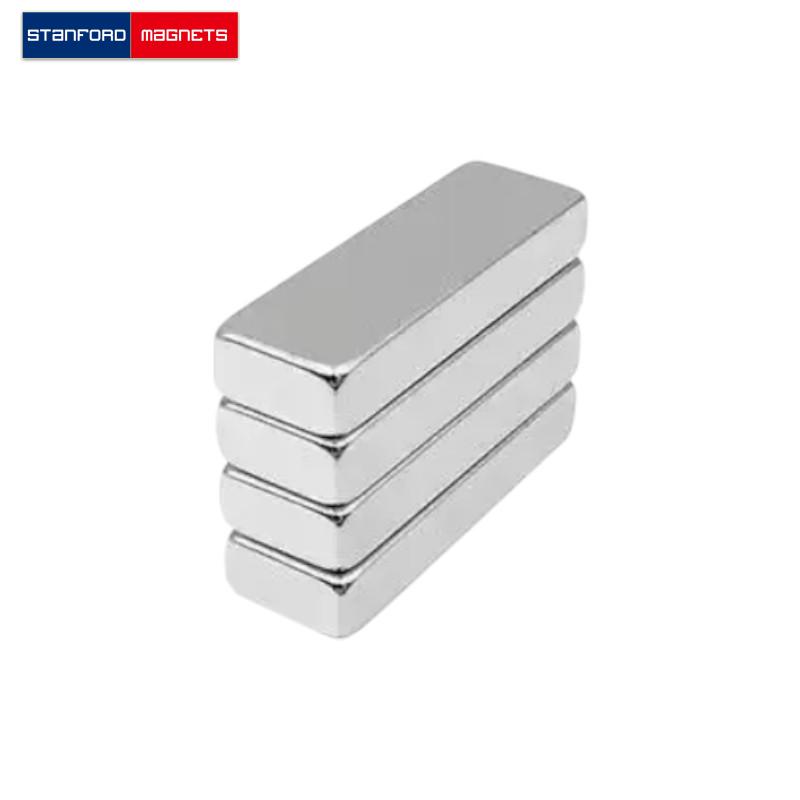

The SMBN0501 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1/4″ × 1/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0169375 lbs. It can pull up to 16.28 lbs steel. And the surface field is up to 5461 gausses.
