SMBN0503 Neodymium Block Magnet

Product ID: SMBN0503

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL DATA SHEET

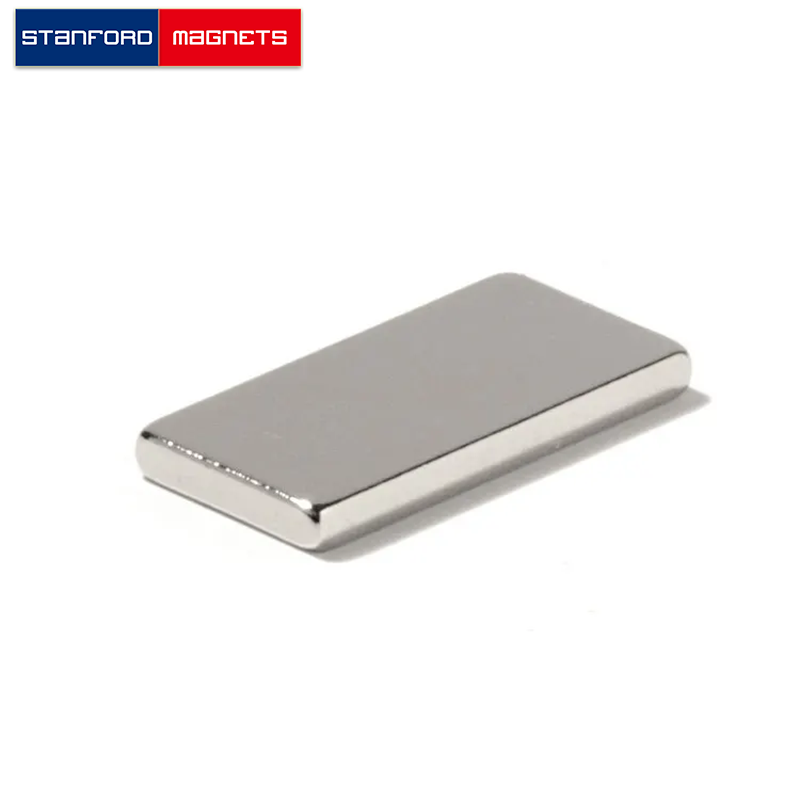

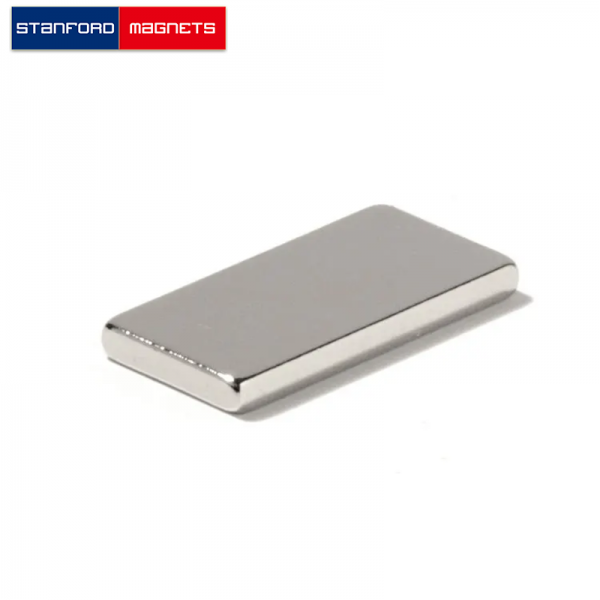

The SMBN0503 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1" × 3/8" × 1/16" thick, magnetized through thickness, with the tolerance of ±0.004" × ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.006375 lbs. It can pull up to 4.53 lbs steel. And the surface field is up to 1446 gauss.

Download a PDF Specification Sheet
