SMBN0511 Neodymium Block Magnet

Product ID: SMBN0511

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL

TECHNICAL DATA SHEET

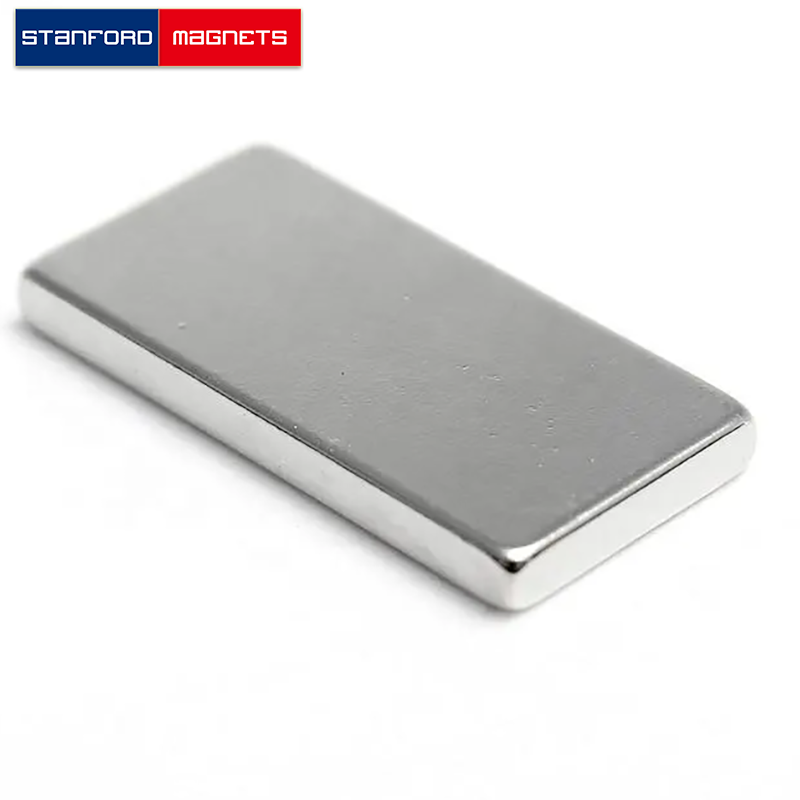

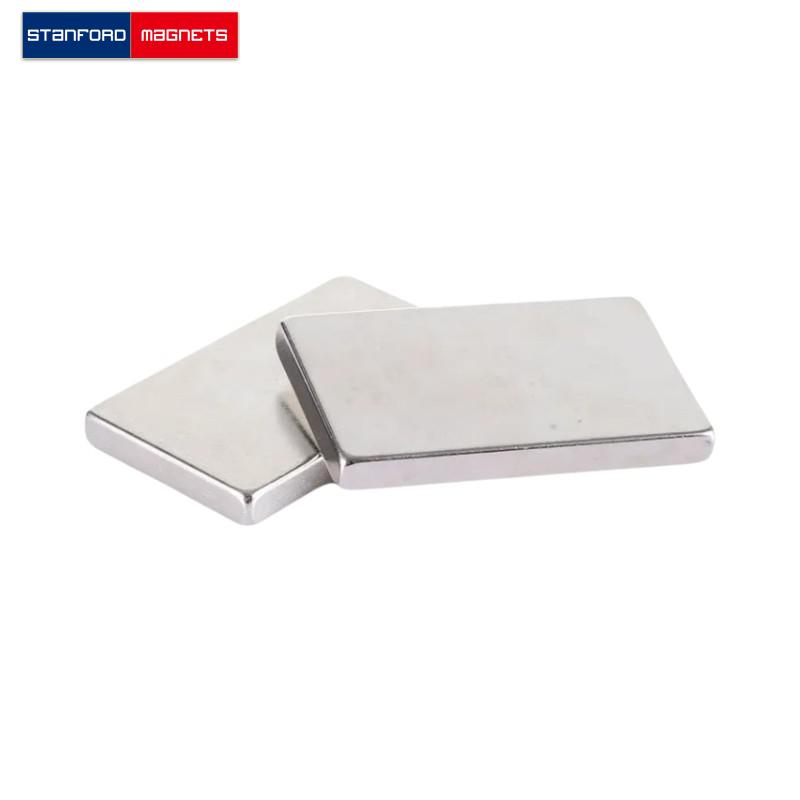

The SMBN0511 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1" × 1/2" × 1/8" thick, magnetized through thickness, with the tolerance of ±0.004" × ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.0169375 lbs. It can pull up to 12.8 lbs steel. And the surface field is up to 2451 gauss.

Download a PDF Specification Sheet
